Product Details

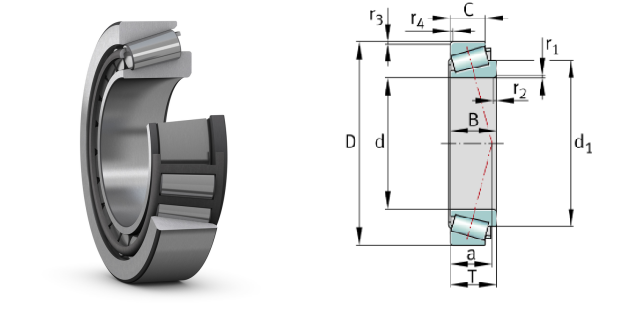

| 302 Series | d mm | D mm | T mm | ≈ KGS | |
| 30201 | 12 | 32 | 10.75 | 0.050 | |
| 30202 | 15 | 35 | 11.75 | 0.054 | |
| 30203 | 17 | 40 | 13.25 | 0.079 | |
| 30204 | 20 | 47 | 15.25 | 0.120 | |
| 30205 | 25 | 52 | 16.25 | 0.150 | |
| 30206 | 30 | 62 | 17.25 | 0.230 | |
| 30207 | 35 | 72 | 18.25 | 0.330 | |
| 30208 | 40 | 80 | 19.75 | 0.420 | |
| 30209 | 45 | 85 | 20.75 | 0.470 | |
| 30210 | 50 | 90 | 21.75 | 0.540 | |
| 30211 | 55 | 100 | 22.75 | 0.700 | |
| 30212 | 60 | 110 | 23.75 | 0.880 | |
| 30213 | 65 | 120 | 24.75 | 1.120 | |
| 30214 | 70 | 125 | 26.25 | 1.240 | |
| 30215 | 75 | 130 | 27.25 | 1.380 | |
| 30216 | 80 | 140 | 28.25 | 1.620 | |
| 30217 | 85 | 150 | 30.50 | 2.050 | |
| 30218 | 90 | 160 | 32.50 | 2.530 | |
| 30219 | 95 | 170 | 34.50 | 2.990 | |
| 30220 | 100 | 180 | 37.00 | 3.630 | |
| 30221 | 105 | 190 | 39.00 | 4.290 | |
| 30222 | 110 | 200 | 41.00 | 5.060 | |
| 30224 | 120 | 215 | 43.50 | 6.130 | |
| 30226 | 130 | 230 | 43.75 | 6.840 | |
| 30228 | 140 | 250 | 45.75 | 8.680 | |
| 30230 | 150 | 270 | 49.00 | 10.600 | |
| 30232 | 160 | 290 | 52.00 | 13.200 | |
| 30234 | 170 | 310 | 57.00 | 16.600 | |
| 30236 | 180 | 320 | 57.00 | 17.000 | |
| 30238 | 190 | 340 | 60.00 | 20.500 | |
| 30240 | 200 | 360 | 64.00 | 24.600 | |
| 30244 | 220 | 400 | 72.00 | 34.400 | |
| 30248 | 240 | 440 | 79.00 | 47.000 | |
| 30252 | 260 | 480 | 89.00 | 62.800 | |
| 30256 | 280 | 500 | 89.00 | 66.500 | |
| 30260 | 300 | 540 | 96.00 | 83.700 | |
| 30264 | 320 | 580 | 104.00 | 107.000 | |
| 303 Series | d mm | D mm | T mm | ≈ KGS | |
| 30301 | 12 | 37 | 14.00 | ||
| 30302 | 15 | 42 | 14.25 | 0.094 | |
| 30303 | 17 | 47 | 15.25 | 0.130 | |
| 30304 | 20 | 52 | 16.25 | 0.170 | |
| 30305 | 25 | 62 | 18.25 | 0.260 | |
| 30306 | 30 | 72 | 20.75 | 0.380 | |
| 30307 | 35 | 80 | 22.75 | 0.510 | |
| 30308 | 40 | 90 | 25.25 | 0.730 | |
| 30309 | 45 | 100 | 27.25 | 0.970 | |
| 30310 | 50 | 110 | 29.25 | 1.240 | |
| 30311 | 55 | 120 | 31.50 | 1.560 | |
| 30312 | 60 | 130 | 33.50 | 1.950 | |
| 30313 | 65 | 140 | 36.00 | 2.420 | |
| 30314 | 70 | 150 | 38.00 | 2.950 | |
| 30315 | 75 | 160 | 40.00 | 3.490 | |
| 30316 | 80 | 170 | 42.50 | 4.140 | |
| 30317 | 85 | 180 | 44.50 | 4.840 | |
| 30318 | 90 | 190 | 46.50 | 5.630 | |
| 30319 | 95 | 200 | 49.50 | 6.460 | |
| 30320 | 100 | 215 | 51.50 | 7.960 | |
| 30321 | 105 | 225 | 53.50 | 9.080 | |
| 30322 | 110 | 240 | 54.50 | 10.800 | |
| 30324 | 120 | 260 | 59.50 | 13.700 | |
| 30326 | 130 | 280 | 63.75 | 16.800 | |
| 30328 | 140 | 300 | 67.75 | 20.070 | |
| 30330 | 150 | 320 | 72.00 | 24.800 | |
| 30332 | 160 | 340 | 75.00 | 28.900 | |
| 30334 | 170 | 360 | 80.00 | 35.000 | |
| 30336 | 180 | 380 | 83.00 | 40.900 | |
| 30338 | 190 | 400 | 86.00 | 46.700 | |
| 30340 | 200 | 420 | 89.00 | 53.500 | |
| 30344 | 220 | 460 | 97.00 | 68.000 | |
| 30348 | 240 | 500 | 105.00 | 88.600 | |
| 30352 | 260 | 540 | 113.00 | 105.500 | |
| 30356 | 280 | 580 | 119.00 | 136.000 | |
| 313 Series | d mm | D mm | T mm | ≈ KGS | |
| 31303 | 17 | 47 | 15.25 | 0.130 | |
| 31304 | 20 | 52 | 16.25 | 0.173 | |
| 31305 | 25 | 62 | 18.25 | 0.270 | |
| 31306 | 30 | 72 | 20.75 | 0.390 | |
| 31307 | 35 | 80 | 22.75 | 0.520 | |
| 31308 | 40 | 90 | 25.25 | 0.720 | |
| 31309 | 45 | 100 | 27.25 | 0.950 | |
| 31310 | 50 | 110 | 29.25 | 1.220 | |
| 31311 | 55 | 120 | 31.50 | 1.540 | |
| 31312 | 60 | 130 | 33.50 | 1.930 | |
| 31313 | 65 | 140 | 36.00 | 2.360 | |
| 31314 | 70 | 150 | 38.00 | 2.870 | |
| 31315 | 75 | 160 | 40.00 | 3.390 | |
| 31316 | 80 | 170 | 42.50 | 4.050 | |
| 31317 | 85 | 180 | 44.50 | 4.620 | |
| 31318 | 90 | 190 | 46.50 | 5.390 | |
| 31319 | 95 | 200 | 49.50 | 6.310 | |
| 31320 | 100 | 215 | 56.50 | 8.640 | |
| 31321 | 105 | 225 | 58.00 | 9.805 | |
| 31322 | 110 | 240 | 63.00 | 12.000 | |
| 31324 | 120 | 260 | 68.00 | 15.300 | |
| 31326 | 130 | 280 | 72.00 | 18.500 | |
| 31328 | 140 | 300 | 77.00 | 22.600 | |
| 31330 | 150 | 320 | 82.00 | 27.200 | |
| 320 Series | d mm | D mm | T mm | ≈ KGS | |
| 32004 | 20 | 42 | 15.00 | 0.098 | |
| 32005 | 25 | 47 | 15.00 | 0.110 | |
| 32006 | 30 | 55 | 17.00 | 0.170 | |
| 32007 | 35 | 62 | 18.00 | 0.230 | |
| 32008 | 40 | 68 | 19.00 | 0.280 | |
| 32009 | 45 | 75 | 20.00 | 0.340 | |
| 32010 | 50 | 80 | 20.00 | 0.380 | |
| 32011 | 55 | 90 | 23.00 | 0.560 | |
| 32012 | 60 | 95 | 23.00 | 0.590 | |
| 32013 | 65 | 100 | 23.00 | 0.630 | |
| 32014 | 70 | 110 | 25.00 | 0.850 | |
| 32015 | 75 | 115 | 25.00 | 0.910 | |
| 32016 | 80 | 125 | 29.00 | 1.300 | |
| 32017 | 85 | 130 | 29.00 | 1.350 | |
| 32018 | 90 | 140 | 32.00 | 1.760 | |
| 32019 | 95 | 145 | 32.00 | 1.850 | |
| 32020 | 100 | 150 | 32.00 | 1.920 | |
| 32021 | 105 | 160 | 35.00 | 2.430 | |
| 32022 | 110 | 170 | 38.00 | 3.070 | |
| 32024 | 120 | 180 | 38.00 | 3.290 | |
| 32026 | 130 | 200 | 45.00 | 4.940 | |
| 32028 | 140 | 210 | 45.00 | 5.260 | |
| 32030 | 150 | 225 | 48.00 | 6.400 | |
| 32032 | 160 | 240 | 51.00 | 7.830 | |
| 32034 | 170 | 260 | 57.00 | 10.600 | |
| 32036 | 180 | 280 | 64.00 | 14.200 | |
| 32038 | 190 | 290 | 64.00 | 14.800 | |
| 32040 | 200 | 310 | 70.00 | 18.800 | |
| 32044 | 220 | 340 | 76.00 | 24.600 | |
| 32048 | 240 | 360 | 76.00 | 26.300 | |
| 32052 | 260 | 400 | 87.00 | 38.200 | |
| 32056 | 280 | 420 | 87.00 | 40.600 | |
| 32060 | 300 | 460 | 100.00 | 57.900 | |
| 32064 | 320 | 480 | 100.00 | 60.800 | |
| 32068 | 340 | 520 | 112.00 | 83.700 | |
| 32072 | 360 | 540 | 112.00 | 86.500 | |
| 32076 | 380 | 560 | 112.00 | 88.300 | |
| 322 Series | d mm | D mm | T mm | ≈ KGS | |
| 32203 | 17 | 40 | 17.25 | 0.079 | |
| 32204 | 20 | 47 | 19.25 | 0.170 | |
| 32205 | 25 | 52 | 19.25 | 0.190 | |
| 32206 | 30 | 62 | 21.25 | 0.290 | |
| 32207 | 35 | 72 | 24.25 | 0.440 | |
| 32208 | 40 | 80 | 24.75 | 0.530 | |
| 32209 | 45 | 85 | 24.75 | 0.580 | |
| 32210 | 50 | 90 | 24.75 | 0.620 | |
| 32211 | 55 | 100 | 26.75 | 0.840 | |
| 32212 | 60 | 110 | 29.75 | 1.150 | |
| 32213 | 65 | 120 | 32.75 | 1.510 | |
| 32214 | 70 | 125 | 33.25 | 1.600 | |
| 32215 | 75 | 130 | 33.25 | 1.670 | |
| 32216 | 80 | 140 | 35.25 | 2.060 | |
| 32217 | 85 | 150 | 38.50 | 2.610 | |
| 32218 | 90 | 160 | 42.50 | 3.330 | |
| 32219 | 95 | 170 | 45.50 | 4.090 | |
| 32220 | 100 | 180 | 49.00 | 4.940 | |
| 32221 | 105 | 190 | 53.00 | 6.020 | |
| 32222 | 110 | 200 | 56.00 | 7.090 | |
| 32224 | 120 | 215 | 61.50 | 9.050 | |
| 32226 | 130 | 230 | 67.75 | 11.200 | |
| 32228 | 140 | 250 | 71.75 | 14.200 | |
| 32230 | 150 | 270 | 77.00 | 17.900 | |
| 32232 | 160 | 290 | 84.00 | 23.200 | |
| 32234 | 170 | 310 | 91.00 | 28.600 | |
| 32236 | 180 | 320 | 91.00 | 29.500 | |
| 32238 | 190 | 340 | 97.00 | 36.000 | |
| 32240 | 200 | 360 | 104.00 | 42.400 | |
| 32244 | 220 | 400 | 114.00 | 59.700 | |
| 32248 | 240 | 440 | 127.00 | 81.500 | |
| 32252 | 260 | 480 | 137.00 | 103.000 | |
| 32256 | 280 | 500 | 137.00 | 108.000 | |
| 32260 | 300 | 540 | 149.00 | 140.000 | |
| 32264 | 320 | 580 | 159.00 | 174.000 | |
| 323 Series | d mm | D mm | T mm | ≈ KGS | |
| 32303 | 17 | 47 | 20.25 | 0.170 | |
| 32304 | 20 | 52 | 22.25 | 0.230 | |
| 32305 | 25 | 62 | 25.25 | 0.360 | |
| 32306 | 30 | 72 | 28.75 | 0.550 | |
| 32307 | 35 | 80 | 32.75 | 0.750 | |
| 32308 | 40 | 90 | 35.25 | 1.040 | |
| 32309 | 45 | 100 | 38.25 | 1.390 | |
| 32310 | 50 | 110 | 42.25 | 1.840 | |
| 32311 | 55 | 120 | 45.50 | 2.340 | |
| 32312 | 60 | 130 | 48.50 | 2.900 | |
| 32313 | 65 | 140 | 51.00 | 3.510 | |
| 32314 | 70 | 140 | 51.00 | 4.290 | |
| 32315 | 75 | 160 | 58.00 | 5.200 | |
| 32316 | 80 | 170 | 61.50 | 6.190 | |
| 32317 | 85 | 180 | 63.50 | 7.080 | |
| 32318 | 90 | 190 | 67.50 | 8.420 | |
| 32319 | 95 | 200 | 71.50 | 9.800 | |
| 32320 | 100 | 215 | 77.50 | 12.500 | |
| 32321 | 105 | 225 | 81.50 | 14.100 | |
| 32322 | 110 | 240 | 84.50 | 16.600 | |
| 32324 | 120 | 260 | 90.50 | 21.400 | |
| 32326 | 130 | 280 | 98.75 | 27.300 | |
| 32328 | 140 | 300 | 107.75 | 34.600 | |
| 32330 | 150 | 320 | 114.00 | 42.000 | |
| 32332 | 160 | 340 | 121.00 | 48.000 | |
| 32334 | 170 | 360 | 127.00 | 56.900 | |
| 32336 | 180 | 380 | 134.00 | 66.800 | |
| 32338 | 190 | 400 | 140.00 | 83.200 | |
| 32340 | 200 | 420 | 146.00 | 93.300 | |
| 32344 | 220 | 460 | 154.00 | 115.000 | |
| 32348 | 240 | 500 | 165.00 | 144.400 | |
| 32352 | 260 | 540 | 176.00 | 181.000 | |
| 32356 | 280 | 580 | 187.00 | 220.000 | |
| 329 Series | d mm | D mm | T mm | ≈ KGS | |
| 32904 | 20 | 37 | 12.00 | 0.053 | |
| 32905 | 25 | 42 | 12.00 | 0.067 | |
| 32906 | 30 | 47 | 12.00 | 0.077 | |
| 32907 | 35 | 55 | 14.00 | 0.127 | |
| 32908 | 40 | 62 | 15.00 | 0.162 | |
| 32909 | 45 | 68 | 15.00 | 0.196 | |
| 32910 | 50 | 72 | 15.00 | 0.200 | |
| 32911 | 55 | 80 | 17.00 | 0.304 | |
| 32912 | 60 | 85 | 17.00 | 0.306 | |
| 32913 | 65 | 90 | 17.00 | 0.322 | |
| 32914 | 70 | 100 | 20.00 | 0.498 | |
| 32915 | 75 | 105 | 20.00 | 0.510 | |
| 32916 | 80 | 110 | 20.00 | 0.571 | |
| 32917 | 85 | 120 | 23.00 | 0.800 | |
| 32918 | 90 | 125 | 23.00 | 0.818 | |
| 32919 | 95 | 130 | 23.00 | 0.880 | |
| 32920 | 100 | 140 | 25.00 | 1.182 | |
| 32921 | 105 | 145 | 25.00 | 1.203 | |
| 32922 | 110 | 150 | 25.00 | 1.265 | |
| 32924 | 120 | 165 | 29.00 | 1.784 | |
| 32926 | 130 | 180 | 32.00 | 2.390 | |
| 32928 | 140 | 190 | 32.00 | 2.530 | |
| 32930 | 150 | 210 | 38.00 | 3.950 | |
| 32932 | 160 | 220 | 38.00 | 4.190 | |
| 32934 | 170 | 230 | 38.00 | 4.480 | |
| 32936 | 180 | 250 | 45.00 | 6.650 | |
| 32938 | 190 | 260 | 45.00 | 7.010 | |
| 32940 | 200 | 260 | 45.00 | 9.490 | |
| 32944 | 220 | 300 | 51.00 | 10.200 | |
| 32948 | 240 | 320 | 63.50 | 11.000 | |
| 32952 | 260 | 360 | 63.50 | 18.900 | |
| 32956 | 280 | 380 | 63.50 | 19.900 | |
| 32960 | 300 | 420 | 76.00 | 31.700 | |
| 32964 | 320 | 440 | 76.00 | 33.500 | |
| 32968 | 340 | 460 | 76.00 | 35.000 | |
| 32972 | 360 | 480 | 76.00 | 37.000 | |
| 32976 | 380 | 520 | 82.00 | 49.500 | |
| 32980 | 400 | 540 | 87.00 | 56.100 | |
| 32984 | 420 | 560 | 87.00 | 57.200 | |
| 330 Series | d mm | D mm | T mm | ≈ KGS | |
| 33005 | 25 | 47 | 17.00 | 0.139 | |
| 33006 | 30 | 55 | 20.00 | 0.212 | |
| 33007 | 35 | 62 | 21.00 | 0.273 | |
| 33008 | 40 | 68 | 22.00 | 0.340 | |
| 33009 | 45 | 75 | 24.00 | 0.428 | |
| 33010 | 50 | 80 | 24.00 | 0.450 | |
| 33011 | 55 | 90 | 27.00 | 0.660 | |
| 33012 | 60 | 95 | 27.00 | 0.700 | |
| 33013 | 65 | 100 | 27.00 | 0.750 | |
| 33014 | 70 | 110 | 31.00 | 1.070 | |
| 33015 | 75 | 115 | 31.00 | 1.180 | |
| 33016 | 80 | 125 | 36.00 | 1.630 | |
| 33017 | 85 | 130 | 36.00 | 1.730 | |
| 33018 | 90 | 140 | 39.00 | 2.200 | |
| 33019 | 95 | 145 | 39.00 | 2.300 | |
| 33020 | 100 | 150 | 39.00 | 2.380 | |
| 33021 | 105 | 160 | 43.00 | 3.020 | |
| 33022 | 110 | 170 | 47.00 | 3.830 | |
| 33024 | 120 | 180 | 48.00 | 4.180 | |
| 33026 | 130 | 200 | 55.00 | 6.130 | |
| 33028 | 140 | 210 | 56.00 | 6.740 | |
| 33030 | 150 | 225 | 59.00 | 8.245 | |
| 331 Series | d mm | D mm | T mm | ≈ KGS | |
| 33108 | 40 | 75 | 26.00 | 0.498 | |
| 33109 | 45 | 80 | 26.00 | 0.550 | |
| 33110 | 50 | 85 | 26.00 | 0.580 | |
| 33111 | 55 | 95 | 30.00 | 0.850 | |
| 33112 | 60 | 100 | 30.00 | 0.920 | |
| 33113 | 65 | 110 | 34.00 | 1.280 | |
| 33114 | 70 | 120 | 37.00 | 1.680 | |
| 33115 | 75 | 125 | 37.00 | 1.780 | |
| 33116 | 80 | 130 | 37.00 | 1.870 | |
| 33117 | 85 | 140 | 41.00 | 2.430 | |
| 33118 | 90 | 150 | 45.00 | 3.110 | |
| 33119 | 95 | 160 | 49.00 | 4.040 | |
| 33120 | 100 | 165 | 52.00 | 4.390 | |
| 33121 | 105 | 175 | 56.00 | 5.440 | |
| 33122 | 110 | 180 | 56.00 | 5.520 | |
| 33124 | 120 | 200 | 62.00 | 7.680 | |
| 332 Series | d mm | D mm | T mm | ≈ KGS | |
| 33205 | 25 | 52 | 22.00 | 0.220 | |
| 33206 | 30 | 62 | 25.00 | 0.350 | |
| 33207 | 35 | 72 | 28.00 | 0.530 | |
| 33208 | 40 | 80 | 32.00 | 0.730 | |
| 33209 | 45 | 85 | 32.00 | 0.790 | |
| 33210 | 50 | 90 | 32.00 | 0.860 | |
| 33211 | 55 | 100 | 35.00 | 1.160 | |
| 33212 | 60 | 110 | 38.00 | 1.550 | |
| 33213 | 65 | 120 | 41.00 | 1.980 | |
| 33214 | 70 | 125 | 41.00 | 2.090 | |
| 33215 | 75 | 130 | 41.00 | 2.190 | |
| 33216 | 80 | 140 | 46.00 | 2.910 | |
| 33217 | 85 | 150 | 49.00 | 3.570 | |
| 33218 | 90 | 160 | 55.00 | 4.620 | |
| 33219 | 95 | 170 | 58.00 | 5.460 | |
| 33220 | 100 | 180 | 63.00 | 6.730 | |
| 33221 | 105 | 190 | 68.00 | 8.380 | |
| Additional information: Metric size (mm) and Inch size (inch) tapered roller bearing; Cage: iron; Inch size: L, LM, H, HH, HM series etc.. 1 inch = 25.4 mm; | |||||
| Inch size series | d mm | D mm | T mm | ≈ KGS | |
| 19067/09195 | 20.600 | 49.200 | 19.800 | 0.155 | |
| 09081/09195 | 20.600 | 49.200 | 21.500 | 0.177 | |
| 07097/07196 | 25.000 | 50.000 | 14.300 | 0.119 | |
| 07100/07196 | 25.400 | 50.005 | 13.495 | 0.119 | |
| 02475/02420 | 31.750 | 68.260 | 22.225 | 0.375 | |
| 17580/17520 | 15.800 | 42.900 | 16.700 | 0.110 | |
| 1755/1729 | 22.220 | 56.890 | 19.360 | 0.258 | |
| 1280/1220 | 22.225 | 57.150 | 22.225 | 0.286 | |
| 15100/15245 | 25.400 | 62.000 | 19.050 | 0.286 | |
| 15101/15243 | 25.400 | 62.000 | 19.050 | 0.286 | |
| 15101/15244 | 25.400 | 62.000 | 20.638 | 0.286 | |
| 15101/15245 | 25.400 | 62.000 | 19.050 | 0.286 | |
| 15101/15250 | 25.400 | 62.000 | 20.638 | 0.286 | |
| 15102/15245 | 25.400 | 62.000 | 20.638 | 0.286 | |
| 15103S/15243 | 26.000 | 62.000 | 19.000 | 0.277 | |
| 15103S/15245 | 16.162 | 57.150 | 19.050 | 0.279 | |
| 15578/15520 | 26.900 | 57.100 | 17.000 | 0.200 | |
| 15580/15520 | 26.900 | 57.150 | 17.000 | 0.211 | |
| 15106/15245 | 26.988 | 61.913 | 19.050 | 0.211 | |
| 15112/15245 | 28.575 | 61.913 | 19.050 | 0.211 | |
| 15590/15520 | 28.600 | 57.200 | 17.500 | 0.196 | |
| 15117/15245 | 29.987 | 62.000 | 19.050 | 0.196 | |
| 15116/15245 | 30.112 | 62.000 | 19.050 | 0.196 | |
| 15120/15250 | 30.200 | 63.500 | 20.638 | 0.196 | |
| 15118/15245 | 30.213 | 62.000 | 19.050 | 0.196 | |
| 15118/15250 | 30.213 | 63.500 | 20.638 | 0.196 | |
| 15119/15245 | 30.213 | 62.000 | 19.050 | 0.196 | |
| 15120/15245 | 30.213 | 62.000 | 19.050 | 0.196 | |
| 18120/15250 | 30.213 | 63.500 | 20.638 | 0.196 | |
| 14116/14276 | 30.226 | 69.012 | 19.583 | 0.365 | |
| 14124/14274 | 31.750 | 69.012 | 19.845 | 0.341 | |
| 14124/14276 | 31.750 | 69.012 | 19.845 | 0.341 | |
| 15125/15245 | 31.750 | 62.000 | 19.050 | 0.341 | |
| 15126/15245 | 31.750 | 62.000 | 19.050 | 0.341 | |
| 12125A/14276 | 31.750 | 69.012 | 19.845 | 0.341 | |
| 14125A/14274 | 31.750 | 69.012 | 19.845 | 0.344 | |
| 14125A/14276 | 31.750 | 69.010 | 19.840 | 0.349 | |
| 14130/14274 | 33.338 | 69.012 | 19.845 | 0.349 | |
| 14130/14276 | 33.338 | 69.012 | 19.845 | 0.349 | |
| 141317/14276 | 33.338 | 69.012 | 19.845 | 0.310 | |
| 14585/14525 | 34.925 | 68.262 | 20.638 | 0.317 | |
| 14136A/14276 | 34.925 | 69.012 | 26.853 | 0.361 | |
| 14137A/14274 | 34.925 | 69.012 | 19.845 | 0.320 | |
| 14137A/14276 | 34.925 | 69.012 | 19.845 | 0.318 | |
| 14138A/14276 | 34.925 | 69.012 | 19.845 | 0.324 | |
| 1779/1729 | 34.930 | 56.900 | 19.840 | 0.249 | |
| 16137/16282 | 34.930 | 71.990 | 20.640 | 0.374 | |
| 14139/14276 | 34.976 | 69.012 | 19.845 | 0.346 | |
| 13687/13620 | 38.000 | 69.012 | 19.050 | 0.297 | |
| 16150/16282 | 38.100 | 72.000 | 19.000 | 0.330 | |
| 17887/17831 | 45.230 | 79.980 | 19.850 | 0.410 | |
| 15113/15245 | 58.575 | 62.000 | 20.638 | 0.280 | |
| 23100/23256 | 25.400 | 65.090 | 22.230 | 0.358 | |
| 2578/2523 | 28.575 | 69.850 | 23.812 | 0.512 | |
| 2559/2523B | 30.162 | 69.850 | 23.812 | 0.480 | |
| 2558/2523 | 30.162 | 69.850 | 23.812 | 0.400 | |
| 2580/2520 | 31.750 | 66.421 | 25.400 | 0.400 | |
| 2582/2523 | 31.750 | 68.850 | 23.812 | 0.478 | |
| 2578/23 | 33.338 | 69.850 | 83.812 | 0.435 | |
| 2581/2523 | 33.338 | 69.850 | 23.812 | 0.444 | |
| 2585/2523 | 33.338 | 69.850 | 23.812 | 0.436 | |
| 2785/2720 | 33.338 | 76.200 | 23.812 | 0.550 | |
| 2585/2520 | 33.340 | 66.420 | 25.360 | 0.400 | |
| 2793/2729 | 34.487 | 76.200 | 23.812 | 0.530 | |
| 2786/2720 | 34.925 | 76.200 | 23.812 | 0.500 | |
| 2793/2720 | 34.925 | 76.200 | 23.812 | 0.500 | |
| 2796/2720 | 34.925 | 76.200 | 23.812 | 0.530 | |
| 25877/25820 | 34.925 | 73.023 | 23.812 | 0.476 | |
| 25877/25821 | 34.925 | 73.025 | 23.812 | 0.500 | |
| 25878/25820 | 34.925 | 73.023 | 23.812 | 0.476 | |
| 25878/25821 | 34.925 | 73.025 | 23.812 | 0.487 | |
| 26883/26822 | 35.500 | 79.375 | 23.812 | 0.600 | |
| 2794/2720 | 36.487 | 76.200 | 23.812 | 0.520 | |
| 25880/25821 | 36.487 | 73.025 | 23.812 | 0.473 | |
| 25570/25520 | 36.510 | 82.930 | 23.812 | 0.675 | |
| 26877/26822 | 36.512 | 79.375 | 23.812 | 0.600 | |
| 2788/2720 | 38.100 | 76.200 | 23.810 | 0.455 | |
| 2788/2729 | 38.100 | 76.200 | 23.800 | 0.496 | |
| 2790/2729 | 38.100 | 76.200 | 23.800 | 0.555 | |
| 25572/25520 | 38.100 | 92.900 | 23.810 | 0.656 | |
| 26878/26822 | 38.100 | 79.375 | 23.812 | 0.584 | |
| 27880/27820 | 38.100 | 80.040 | 24.610 | 0.563 | |
| 2789/2720 | 39.688 | 76.200 | 23.812 | 0.482 | |
| 26880/26822 | 39.688 | 79.375 | 23.812 | 0.569 | |
| 26881/26822 | 39.688 | 79.375 | 23.812 | 0.559 | |
| 26881/26823 | 39.688 | 76.200 | 25.400 | 0.525 | |
| 24780/24721 | 41.275 | 76.200 | 25.400 | 0.485 | |
| 26882/26820 | 41.275 | 80.167 | 25.400 | 0.569 | |
| 26882/26822 | 41.275 | 79.375 | 23.812 | 0.536 | |
| 26882/26823 | 41.275 | 76.200 | 25.400 | 0.499 | |
| 26882/26824 | 41.275 | 80.000 | 23.812 | 0.545 | |
| 26885/26822 | 41.275 | 79.375 | 23.810 | 0.524 | |
| 26882/26522A | 241.275 | 79.375 | 23.812 | 0.562 | |
| 25577/25522 | 42.800 | 82.900 | 23.800 | 0.599 | |
| 25578/25520 | 42.862 | 82.931 | 23.812 | 0.593 | |
| 25577/25520 | 42.875 | 82.931 | 23.812 | 0.598 | |
| 25577/25521 | 42.875 | 83.058 | 23.812 | 0.538 | |
| 26884/26823 | 42.875 | 76.200 | 25.400 | 0.483 | |
| 26884/26824 | 42.875 | 80.000 | 25.400 | 0.538 | |
| 26886/26822 | 42.875 | 79.375 | 23.812 | 0.499 | |
| 25580/25521 | 44.450 | 82.931 | 23.812 | 0.570 | |
| 25581/25520 | 44.450 | 82.931 | 23.812 | 0.570 | |
| 25582/25520 | 44.450 | 82.931 | 23.812 | 0.565 | |
| 25581/25521 | 44.500 | 82.900 | 23.800 | 0.563 | |
| 25584/25520 | 44.983 | 83.058 | 23.812 | 0.565 | |
| 25584/25521 | 44.983 | 83.058 | 23.812 | 0.546 | |
| 25590/25519 | 45.618 | 83.100 | 23.812 | 0.545 | |
| 25590/25521 | 45.618 | 82.931 | 23.812 | 0.551 | |
| 25590/25523 | 45.618 | 82.931 | 26.983 | 0.582 | |
| 25590/25526 | 45.618 | 85.000 | 23.812 | 0.590 | |
| 28580/28521 | 50.000 | 92.100 | 24.600 | 0.697 | |
| 28678/28622B | 50.000 | 101.500 | 24.600 | 0.865 | |
| 28584/28521 | 52.388 | 92.075 | 24.608 | 0.674 | |
| 28680/28622 | 55.562 | 97.630 | 24.608 | 0.760 | |
| 28682/28622 | 57.150 | 97.630 | 24.610 | 0.755 | |
| 28985/28920 | 60.325 | 101.600 | 25.400 | 0.851 | |
| 28985/28921 | 60.325 | 100.000 | 25.400 | 0.812 | |
| 28995/28921 | 62.800 | 101.600 | 25.400 | 0.740 | |
| 29585/29520 | 63.500 | 107.950 | 25.400 | 0.740 | |
| 29585/29521 | 63.500 | 110.000 | 25.400 | 0.982 | |
| 29586/29520 | 63.500 | 107.950 | 25.400 | 0.914 | |
| 29590/29521 | 66.675 | 110.000 | 25.400 | 0.925 | |
| 29675/29630 | 69.850 | 120.650 | 25.400 | 1.150 | |
| 26884/26820 | 72.875 | 80.167 | 25.400 | 1.150 | |
| 29685/29620 | 73.025 | 112.712 | 25.400 | 0.878 | |
| 29688/29620 | 73.817 | 112.712 | 25.400 | 0.870 | |
| 27687/27620 | 82.550 | 125.412 | 25.400 | 1.100 | |
| 240KBE031+L | 240.000 | 400.000 | 160.000 | 75.000 | |
| 250KVE3601 | 82.500 | 365.000 | 270.000 | 91.000 | |
| 31594/31520 | 34.925 | 76.200 | 29.370 | 0.632 | |
| 3390/20 | 38.100 | 79.325 | 29.369 | 0.651 | |
| 3786/20 | 38.100 | 85.725 | 30.162 | 0.695 | |
| 3381/3320 | 38.100 | 80.167 | 29.370 | 0.721 | |
| 3382/3320 | 39.688 | 80.167 | 29.370 | 0.755 | |
| 3382/3321 | 39.688 | 77.534 | 29.370 | 0.782 | |
| 3382/3331 | 39.688 | 80.167 | 29.370 | 0.796 | |
| 3382/3339 | 39.688 | 80.167 | 29.370 | 0.796 | |
| 3386/3320 | 39.688 | 80.167 | 29.370 | 0.796 | |
| 3384/3320 | 41.275 | 80.167 | 29.370 | 0.796 | |
| 3577/3520 | 41.275 | 84.138 | 30.162 | 0.752 | |
| 3877/3820 | 41.275 | 85.725 | 30.162 | 0.793 | |
| 3579/3525 | 42.780 | 87.280 | 30.162 | 0.793 | |
| 3574/25 | 42.860 | 87.300 | 30.160 | 0.806 | |
| 35BC | 43.655 | 0.000 | 0.000 | 0.061 | |
| 3777/3720 | 44.083 | 93.264 | 30.162 | 0.930 | |
| 355/354A | 44.450 | 85.000 | 20.638 | 0.820 | |
| 3578/3525 | 44.450 | 87.312 | 30.162 | 0.789 | |
| 3782/3720 | 44.450 | 92.260 | 23.820 | 0.936 | |
| 3782/3730 | 44.450 | 93.264 | 30.162 | 0.945 | |
| 33885/33822 | 44.450 | 95.250 | 28.580 | 0.977 | |
| 3776/3720 | 44.983 | 93.264 | 30.162 | 0.977 | |
| 358/354 | 45.000 | 80.000 | 20.638 | 0.523 | |
| 367/362 | 45.000 | 90.000 | 20.000 | 0.601 | |
| 358/354A | 45.000 | 85.000 | 20.638 | 0.601 | |
| 3778/3720 | 47.625 | 93.264 | 30.162 | 0.601 | |
| 3781/3720 | 49.212 | 93.264 | 30.162 | 0.601 | |
| 368/363 | 50.000 | 90.000 | 20.000 | 0.557 | |
| 368/362A | 50.000 | 88.900 | 20.138 | 0.517 | |
| 368/362 | 50.800 | 88.900 | 20.638 | 0.517 | |
| 368/362x | 50.800 | 90.000 | 22.230 | 0.595 | |
| 368A/362A | 50.800 | 88.900 | 20.638 | 0.520 | |
| 368S/362A | 50.800 | 88.900 | 22.230 | 0.503 | |
| 3775/3720 | 50.800 | 93.264 | 30.162 | 0.503 | |
| 3775/3730 | 50.800 | 93.264 | 30.162 | 0.870 | |
| 3780/3726 | 50.800 | 93.264 | 30.162 | 0.870 | |
| 3780/3726 | 50.800 | 95.250 | 30.162 | 0.870 | |
| 3780/3730 | 50.800 | 93.264 | 30.162 | 0.870 | |
| 3780/3732 | 50.800 | 98.425 | 30.162 | 0.870 | |
| 3784/3720 | 50.800 | 93.264 | 30.162 | 0.870 | |
| 385A/382A | 50.800 | 96.840 | 21.000 | 0.693 | |
| 33889/33821 | 50.800 | 95.200 | 27.800 | 0.862 | |
| 33889/33822 | 50.800 | 95.250 | 28.580 | 0.866 | |
| 3780/3720/P6 | 50.800 | 93.300 | 30.162 | 0.870 | |
| 3767/3720 | 52.388 | 93.264 | 30.162 | 0.870 | |
| 389A/382A | 53.975 | 96.838 | 21.000 | 0.870 | |
| 33895/33822 | 53.975 | 95.250 | 27.782 | 0.819 | |
| 39578/39520 | 53.975 | 112.712 | 30.162 | 0.819 | |
| 32310/32355 | 55.000 | 110.000 | 42.250 | 1.710 | |
| 387A/382A | 57.150 | 96.838 | 21.000 | 0.599 | |
| 387A/383A | 57.150 | 100.000 | 21.000 | 0.599 | |
| 3979/3920 | 57.150 | 112.712 | 30.162 | 0.599 | |
| 33225/33462 | 57.150 | 117.475 | 38.000 | 0.599 | |
| 39580/39520 | 57.150 | 112.712 | 30.162 | 1.380 | |
| 39580/39528 | 57.150 | 119.985 | 32.750 | 1.740 | |
| 39581/39520 | 57.150 | 112.712 | 30.162 | 1.420 | |
| 390/394A | 57.200 | 110.000 | 22.000 | 0.845 | |
| 3981/3920 | 58.738 | 112.712 | 30.162 | 0.845 | |
| 3977/3920 | 60.000 | 112.715 | 30.162 | 0.845 | |
| 3980/3920 | 60.325 | 112.712 | 30.162 | 0.845 | |
| 3892/3920 | 63.500 | 112.721 | 30.162 | 1.260 | |
| 3982/3920 | 63.500 | 112.712 | 30.162 | 1.260 | |
| 33251/33472 | 63.500 | 120.000 | 41.000 | 2.020 | |
| 3984/3920 | 66.675 | 112.712 | 30.048 | 1.160 | |
| 3994/3920 | 66.675 | 112.712 | 30.163 | 1.160 | |
| 33262/33462 | 66.675 | 117.475 | 30.162 | 2.020 | |
| 33269/33462 | 68.262 | 117.475 | 30.162 | 1.272 | |
| 33275/33462 | 69.851 | 117.475 | 30.162 | 1.272 | |
| 33275/33472 | 69.900 | 120.000 | 29.794 | 1.370 | |
| 33281/33462 | 71.438 | 117.415 | 30.162 | 1.029 | |
| 33281/33472 | 71.438 | 120.000 | 29.800 | 1.330 | |
| 37248WF/DPICS130 | 240.000 | 338.000 | 248.000 | 69.000 | |
| 3510/710X2 | 710.000 | 1030.000 | 236.000 | 651.000 | |
| 418/414 | 38.100 | 88.500 | 26.988 | 0.327 | |
| 420/414 | 40.000 | 88.500 | 26.988 | 0.327 | |
| 4395/4335 | 40.070 | 90.490 | 40.390 | 1.235 | |
| 419/414 | 41.275 | 88.500 | 26.988 | 0.679 | |
| 44162/44348 | 41.280 | 88.500 | 23.700 | 0.679 | |
| 460/453 | 44.450 | 104.775 | 30.162 | 1.082 | |
| 460/453A | 44.450 | 107.950 | 247.783 | 1.341 | |
| 463/453X | 47.625 | 104.775 | 30.162 | 1.082 | |
| 467/453X | 47.625 | 104.775 | 30.160 | 1.082 | |
| 469/453X | 50.800 | 107.590 | 27.783 | 1.230 | |
| 466/453X | 52.388 | 104.775 | 30.162 | 1.068 | |
| 468/453X | 52.388 | 104.775 | 30.162 | 1.068 | |
| 456/453X | 53.975 | 104.775 | 30.162 | 1.068 | |
| 45291/45220 | 57.150 | 104.780 | 30.960 | 1.065 | |
| 483/472A | 63.500 | 120.000 | 29.002 | 1.320 | |
| 302 Series | d mm | D mm | T mm | ≈ KGS | |
| 30201 | 12 | 32 | 10.75 | 0.050 | |
| 30202 | 15 | 35 | 11.75 | 0.054 | |
| 30203 | 17 | 40 | 13.25 | 0.079 | |
| 30204 | 20 | 47 | 15.25 | 0.120 | |
| 30205 | 25 | 52 | 16.25 | 0.150 | |
| 30206 | 30 | 62 | 17.25 | 0.230 | |
| 30207 | 35 | 72 | 18.25 | 0.330 | |
| 30208 | 40 | 80 | 19.75 | 0.420 | |
| 30209 | 45 | 85 | 20.75 | 0.470 | |
| 30210 | 50 | 90 | 21.75 | 0.540 | |
| 30211 | 55 | 100 | 22.75 | 0.700 | |
| 30212 | 60 | 110 | 23.75 | 0.880 | |
| 30213 | 65 | 120 | 24.75 | 1.120 | |
| 30214 | 70 | 125 | 26.25 | 1.240 | |
| 30215 | 75 | 130 | 27.25 | 1.380 | |
| 30216 | 80 | 140 | 28.25 | 1.620 | |
| 30217 | 85 | 150 | 30.50 | 2.050 | |
| 30218 | 90 | 160 | 32.50 | 2.530 | |
| 30219 | 95 | 170 | 34.50 | 2.990 | |
| 30220 | 100 | 180 | 37.00 | 3.630 | |
| 30221 | 105 | 190 | 39.00 | 4.290 | |
| 30222 | 110 | 200 | 41.00 | 5.060 | |
| 30224 | 120 | 215 | 43.50 | 6.130 | |
| 30226 | 130 | 230 | 43.75 | 6.840 | |
| 30228 | 140 | 250 | 45.75 | 8.680 | |
| 30230 | 150 | 270 | 49.00 | 10.600 | |
| 30232 | 160 | 290 | 52.00 | 13.200 | |
| 30234 | 170 | 310 | 57.00 | 16.600 | |
| 30236 | 180 | 320 | 57.00 | 17.000 | |
| 30238 | 190 | 340 | 60.00 | 20.500 | |
| 30240 | 200 | 360 | 64.00 | 24.600 | |
| 30244 | 220 | 400 | 72.00 | 34.400 | |
| 30248 | 240 | 440 | 79.00 | 47.000 | |
| 30252 | 260 | 480 | 89.00 | 62.800 | |
| 30256 | 280 | 500 | 89.00 | 66.500 | |
| 30260 | 300 | 540 | 96.00 | 83.700 | |
| 30264 | 320 | 580 | 104.00 | 107.000 | |
| 303 Series | d mm | D mm | T mm | ≈ KGS | |
| 30301 | 12 | 37 | 14.00 | ||
| 30302 | 15 | 42 | 14.25 | 0.094 | |
| 30303 | 17 | 47 | 15.25 | 0.130 | |
| 30304 | 20 | 52 | 16.25 | 0.170 | |
| 30305 | 25 | 62 | 18.25 | 0.260 | |
| 30306 | 30 | 72 | 20.75 | 0.380 | |
| 30307 | 35 | 80 | 22.75 | 0.510 | |
| 30308 | 40 | 90 | 25.25 | 0.730 | |
| 30309 | 45 | 100 | 27.25 | 0.970 | |
| 30310 | 50 | 110 | 29.25 | 1.240 | |
| 30311 | 55 | 120 | 31.50 | 1.560 | |
| 30312 | 60 | 130 | 33.50 | 1.950 | |
| 30313 | 65 | 140 | 36.00 | 2.420 | |
| 30314 | 70 | 150 | 38.00 | 2.950 | |
| 30315 | 75 | 160 | 40.00 | 3.490 | |
| 30316 | 80 | 170 | 42.50 | 4.140 | |
| 30317 | 85 | 180 | 44.50 | 4.840 | |
| 30318 | 90 | 190 | 46.50 | 5.630 | |
| 30319 | 95 | 200 | 49.50 | 6.460 | |
| 30320 | 100 | 215 | 51.50 | 7.960 | |
| 30321 | 105 | 225 | 53.50 | 9.080 | |
| 30322 | 110 | 240 | 54.50 | 10.800 | |
| 30324 | 120 | 260 | 59.50 | 13.700 | |
| 30326 | 130 | 280 | 63.75 | 16.800 | |
| 30328 | 140 | 300 | 67.75 | 20.070 | |
| 30330 | 150 | 320 | 72.00 | 24.800 | |
| 30332 | 160 | 340 | 75.00 | 28.900 | |
| 30334 | 170 | 360 | 80.00 | 35.000 | |
| 30336 | 180 | 380 | 83.00 | 40.900 | |
| 30338 | 190 | 400 | 86.00 | 46.700 | |
| 30340 | 200 | 420 | 89.00 | 53.500 | |
| 30344 | 220 | 460 | 97.00 | 68.000 | |
| 30348 | 240 | 500 | 105.00 | 88.600 | |
| 30352 | 260 | 540 | 113.00 | 105.500 | |
| 30356 | 280 | 580 | 119.00 | 136.000 | |
| 313 Series | d mm | D mm | T mm | ≈ KGS | |
| 31303 | 17 | 47 | 15.25 | 0.130 | |
| 31304 | 20 | 52 | 16.25 | 0.173 | |
| 31305 | 25 | 62 | 18.25 | 0.270 | |
| 31306 | 30 | 72 | 20.75 | 0.390 | |
| 31307 | 35 | 80 | 22.75 | 0.520 | |
| 31308 | 40 | 90 | 25.25 | 0.720 | |
| 31309 | 45 | 100 | 27.25 | 0.950 | |
| 31310 | 50 | 110 | 29.25 | 1.220 | |
| 31311 | 55 | 120 | 31.50 | 1.540 | |
| 31312 | 60 | 130 | 33.50 | 1.930 | |
| 31313 | 65 | 140 | 36.00 | 2.360 | |
| 31314 | 70 | 150 | 38.00 | 2.870 | |
| 31315 | 75 | 160 | 40.00 | 3.390 | |
| 31316 | 80 | 170 | 42.50 | 4.050 | |
| 31317 | 85 | 180 | 44.50 | 4.620 | |
| 31318 | 90 | 190 | 46.50 | 5.390 | |
| 31319 | 95 | 200 | 49.50 | 6.310 | |
| 31320 | 100 | 215 | 56.50 | 8.640 | |
| 31321 | 105 | 225 | 58.00 | 9.805 | |
| 31322 | 110 | 240 | 63.00 | 12.000 | |
| 31324 | 120 | 260 | 68.00 | 15.300 | |
| 31326 | 130 | 280 | 72.00 | 18.500 | |
| 31328 | 140 | 300 | 77.00 | 22.600 | |
| 31330 | 150 | 320 | 82.00 | 27.200 | |
| 320 Series | d mm | D mm | T mm | ≈ KGS | |
| 32004 | 20 | 42 | 15.00 | 0.098 | |
| 32005 | 25 | 47 | 15.00 | 0.110 | |
| 32006 | 30 | 55 | 17.00 | 0.170 | |
| 32007 | 35 | 62 | 18.00 | 0.230 | |
| 32008 | 40 | 68 | 19.00 | 0.280 | |
| 32009 | 45 | 75 | 20.00 | 0.340 | |
| 32010 | 50 | 80 | 20.00 | 0.380 | |
| 32011 | 55 | 90 | 23.00 | 0.560 | |
| 32012 | 60 | 95 | 23.00 | 0.590 | |
| 32013 | 65 | 100 | 23.00 | 0.630 | |
| 32014 | 70 | 110 | 25.00 | 0.850 | |
| 32015 | 75 | 115 | 25.00 | 0.910 | |
| 32016 | 80 | 125 | 29.00 | 1.300 | |
| 32017 | 85 | 130 | 29.00 | 1.350 | |
| 32018 | 90 | 140 | 32.00 | 1.760 | |
| 32019 | 95 | 145 | 32.00 | 1.850 | |
| 32020 | 100 | 150 | 32.00 | 1.920 | |
| 32021 | 105 | 160 | 35.00 | 2.430 | |
| 32022 | 110 | 170 | 38.00 | 3.070 | |
| 32024 | 120 | 180 | 38.00 | 3.290 | |
| 32026 | 130 | 200 | 45.00 | 4.940 | |
| 32028 | 140 | 210 | 45.00 | 5.260 | |
| 32030 | 150 | 225 | 48.00 | 6.400 | |
| 32032 | 160 | 240 | 51.00 | 7.830 | |
| 32034 | 170 | 260 | 57.00 | 10.600 | |
| 32036 | 180 | 280 | 64.00 | 14.200 | |
| 32038 | 190 | 290 | 64.00 | 14.800 | |
| 32040 | 200 | 310 | 70.00 | 18.800 | |
| 32044 | 220 | 340 | 76.00 | 24.600 | |
| 32048 | 240 | 360 | 76.00 | 26.300 | |
| 32052 | 260 | 400 | 87.00 | 38.200 | |
| 32056 | 280 | 420 | 87.00 | 40.600 | |
| 32060 | 300 | 460 | 100.00 | 57.900 | |
| 32064 | 320 | 480 | 100.00 | 60.800 | |
| 32068 | 340 | 520 | 112.00 | 83.700 | |
| 32072 | 360 | 540 | 112.00 | 86.500 | |
| 32076 | 380 | 560 | 112.00 | 88.300 | |
| 322 Series | d mm | D mm | T mm | ≈ KGS | |
| 32203 | 17 | 40 | 17.25 | 0.079 | |
| 32204 | 20 | 47 | 19.25 | 0.170 | |
| 32205 | 25 | 52 | 19.25 | 0.190 | |
| 32206 | 30 | 62 | 21.25 | 0.290 | |
| 32207 | 35 | 72 | 24.25 | 0.440 | |
| 32208 | 40 | 80 | 24.75 | 0.530 | |
| 32209 | 45 | 85 | 24.75 | 0.580 | |
| 32210 | 50 | 90 | 24.75 | 0.620 | |
| 32211 | 55 | 100 | 26.75 | 0.840 | |
| 32212 | 60 | 110 | 29.75 | 1.150 | |
| 32213 | 65 | 120 | 32.75 | 1.510 | |
| 32214 | 70 | 125 | 33.25 | 1.600 | |
| 32215 | 75 | 130 | 33.25 | 1.670 | |
| 32216 | 80 | 140 | 35.25 | 2.060 | |
| 32217 | 85 | 150 | 38.50 | 2.610 | |
| 32218 | 90 | 160 | 42.50 | 3.330 | |
| 32219 | 95 | 170 | 45.50 | 4.090 | |
| 32220 | 100 | 180 | 49.00 | 4.940 | |
| 32221 | 105 | 190 | 53.00 | 6.020 | |
| 32222 | 110 | 200 | 56.00 | 7.090 | |
| 32224 | 120 | 215 | 61.50 | 9.050 | |
| 32226 | 130 | 230 | 67.75 | 11.200 | |
| 32228 | 140 | 250 | 71.75 | 14.200 | |
| 32230 | 150 | 270 | 77.00 | 17.900 | |
| 32232 | 160 | 290 | 84.00 | 23.200 | |
| 32234 | 170 | 310 | 91.00 | 28.600 | |
| 32236 | 180 | 320 | 91.00 | 29.500 | |
| 32238 | 190 | 340 | 97.00 | 36.000 | |
| 32240 | 200 | 360 | 104.00 | 42.400 | |
| 32244 | 220 | 400 | 114.00 | 59.700 | |
| 32248 | 240 | 440 | 127.00 | 81.500 | |
| 32252 | 260 | 480 | 137.00 | 103.000 | |
| 32256 | 280 | 500 | 137.00 | 108.000 | |
| 32260 | 300 | 540 | 149.00 | 140.000 | |
| 32264 | 320 | 580 | 159.00 | 174.000 | |
| 323 Series | d mm | D mm | T mm | ≈ KGS | |
| 32303 | 17 | 47 | 20.25 | 0.170 | |
| 32304 | 20 | 52 | 22.25 | 0.230 | |
| 32305 | 25 | 62 | 25.25 | 0.360 | |
| 32306 | 30 | 72 | 28.75 | 0.550 | |
| 32307 | 35 | 80 | 32.75 | 0.750 | |
| 32308 | 40 | 90 | 35.25 | 1.040 | |
| 32309 | 45 | 100 | 38.25 | 1.390 | |
| 32310 | 50 | 110 | 42.25 | 1.840 | |
| 32311 | 55 | 120 | 45.50 | 2.340 | |
| 32312 | 60 | 130 | 48.50 | 2.900 | |
| 32313 | 65 | 140 | 51.00 | 3.510 | |
| 32314 | 70 | 140 | 51.00 | 4.290 | |
| 32315 | 75 | 160 | 58.00 | 5.200 | |
| 32316 | 80 | 170 | 61.50 | 6.190 | |
| 32317 | 85 | 180 | 63.50 | 7.080 | |
| 32318 | 90 | 190 | 67.50 | 8.420 | |
| 32319 | 95 | 200 | 71.50 | 9.800 | |
| 32320 | 100 | 215 | 77.50 | 12.500 | |
| 32321 | 105 | 225 | 81.50 | 14.100 | |
| 32322 | 110 | 240 | 84.50 | 16.600 | |
| 32324 | 120 | 260 | 90.50 | 21.400 | |
| 32326 | 130 | 280 | 98.75 | 27.300 | |
| 32328 | 140 | 300 | 107.75 | 34.600 | |
| 32330 | 150 | 320 | 114.00 | 42.000 | |
| 32332 | 160 | 340 | 121.00 | 48.000 | |
| 32334 | 170 | 360 | 127.00 | 56.900 | |
| 32336 | 180 | 380 | 134.00 | 66.800 | |
| 32338 | 190 | 400 | 140.00 | 83.200 | |
| 32340 | 200 | 420 | 146.00 | 93.300 | |
| 32344 | 220 | 460 | 154.00 | 115.000 | |
| 32348 | 240 | 500 | 165.00 | 144.400 | |
| 32352 | 260 | 540 | 176.00 | 181.000 | |
| 32356 | 280 | 580 | 187.00 | 220.000 | |
| 329 Series | d mm | D mm | T mm | ≈ KGS | |
| 32904 | 20 | 37 | 12.00 | 0.053 | |
| 32905 | 25 | 42 | 12.00 | 0.067 | |
| 32906 | 30 | 47 | 12.00 | 0.077 | |
| 32907 | 35 | 55 | 14.00 | 0.127 | |
| 32908 | 40 | 62 | 15.00 | 0.162 | |
| 32909 | 45 | 68 | 15.00 | 0.196 | |
| 32910 | 50 | 72 | 15.00 | 0.200 | |
| 32911 | 55 | 80 | 17.00 | 0.304 | |
| 32912 | 60 | 85 | 17.00 | 0.306 | |
| 32913 | 65 | 90 | 17.00 | 0.322 | |
| 32914 | 70 | 100 | 20.00 | 0.498 | |
| 32915 | 75 | 105 | 20.00 | 0.510 | |
| 32916 | 80 | 110 | 20.00 | 0.571 | |
| 32917 | 85 | 120 | 23.00 | 0.800 | |
| 32918 | 90 | 125 | 23.00 | 0.818 | |
| 32919 | 95 | 130 | 23.00 | 0.880 | |
| 32920 | 100 | 140 | 25.00 | 1.182 | |
| 32921 | 105 | 145 | 25.00 | 1.203 | |
| 32922 | 110 | 150 | 25.00 | 1.265 | |
| 32924 | 120 | 165 | 29.00 | 1.784 | |
| 32926 | 130 | 180 | 32.00 | 2.390 | |
| 32928 | 140 | 190 | 32.00 | 2.530 | |
| 32930 | 150 | 210 | 38.00 | 3.950 | |
| 32932 | 160 | 220 | 38.00 | 4.190 | |
| 32934 | 170 | 230 | 38.00 | 4.480 | |
| 32936 | 180 | 250 | 45.00 | 6.650 | |
| 32938 | 190 | 260 | 45.00 | 7.010 | |
| 32940 | 200 | 260 | 45.00 | 9.490 | |
| 32944 | 220 | 300 | 51.00 | 10.200 | |
| 32948 | 240 | 320 | 63.50 | 11.000 | |
| 32952 | 260 | 360 | 63.50 | 18.900 | |
| 32956 | 280 | 380 | 63.50 | 19.900 | |
| 32960 | 300 | 420 | 76.00 | 31.700 | |
| 32964 | 320 | 440 | 76.00 | 33.500 | |
| 32968 | 340 | 460 | 76.00 | 35.000 | |
| 32972 | 360 | 480 | 76.00 | 37.000 | |
| 32976 | 380 | 520 | 82.00 | 49.500 | |
| 32980 | 400 | 540 | 87.00 | 56.100 | |
| 32984 | 420 | 560 | 87.00 | 57.200 | |
| 330 Series | d mm | D mm | T mm | ≈ KGS | |
| 33005 | 25 | 47 | 17.00 | 0.139 | |
| 33006 | 30 | 55 | 20.00 | 0.212 | |
| 33007 | 35 | 62 | 21.00 | 0.273 | |
| 33008 | 40 | 68 | 22.00 | 0.340 | |
| 33009 | 45 | 75 | 24.00 | 0.428 | |
| 33010 | 50 | 80 | 24.00 | 0.450 | |
| 33011 | 55 | 90 | 27.00 | 0.660 | |
| 33012 | 60 | 95 | 27.00 | 0.700 | |
| 33013 | 65 | 100 | 27.00 | 0.750 | |
| 33014 | 70 | 110 | 31.00 | 1.070 | |
| 33015 | 75 | 115 | 31.00 | 1.180 | |
| 33016 | 80 | 125 | 36.00 | 1.630 | |
| 33017 | 85 | 130 | 36.00 | 1.730 | |
| 33018 | 90 | 140 | 39.00 | 2.200 | |
| 33019 | 95 | 145 | 39.00 | 2.300 | |
| 33020 | 100 | 150 | 39.00 | 2.380 | |
| 33021 | 105 | 160 | 43.00 | 3.020 | |
| 33022 | 110 | 170 | 47.00 | 3.830 | |
| 33024 | 120 | 180 | 48.00 | 4.180 | |
| 33026 | 130 | 200 | 55.00 | 6.130 | |
| 33028 | 140 | 210 | 56.00 | 6.740 | |
| 33030 | 150 | 225 | 59.00 | 8.245 | |
| 331 Series | d mm | D mm | T mm | ≈ KGS | |
| 33108 | 40 | 75 | 26.00 | 0.498 | |
| 33109 | 45 | 80 | 26.00 | 0.550 | |
| 33110 | 50 | 85 | 26.00 | 0.580 | |
| 33111 | 55 | 95 | 30.00 | 0.850 | |
| 33112 | 60 | 100 | 30.00 | 0.920 | |
| 33113 | 65 | 110 | 34.00 | 1.280 | |
| 33114 | 70 | 120 | 37.00 | 1.680 | |
| 33115 | 75 | 125 | 37.00 | 1.780 | |
| 33116 | 80 | 130 | 37.00 | 1.870 | |
| 33117 | 85 | 140 | 41.00 | 2.430 | |
| 33118 | 90 | 150 | 45.00 | 3.110 | |
| 33119 | 95 | 160 | 49.00 | 4.040 | |
| 33120 | 100 | 165 | 52.00 | 4.390 | |
| 33121 | 105 | 175 | 56.00 | 5.440 | |
| 33122 | 110 | 180 | 56.00 | 5.520 | |
| 33124 | 120 | 200 | 62.00 | 7.680 | |
| 332 Series | d mm | D mm | T mm | ≈ KGS | |
| 33205 | 25 | 52 | 22.00 | 0.220 | |
| 33206 | 30 | 62 | 25.00 | 0.350 | |
| 33207 | 35 | 72 | 28.00 | 0.530 | |
| 33208 | 40 | 80 | 32.00 | 0.730 | |
| 33209 | 45 | 85 | 32.00 | 0.790 | |
| 33210 | 50 | 90 | 32.00 | 0.860 | |
| 33211 | 55 | 100 | 35.00 | 1.160 | |
| 33212 | 60 | 110 | 38.00 | 1.550 | |
| 33213 | 65 | 120 | 41.00 | 1.980 | |
| 33214 | 70 | 125 | 41.00 | 2.090 | |
| 33215 | 75 | 130 | 41.00 | 2.190 | |
| 33216 | 80 | 140 | 46.00 | 2.910 | |
| 33217 | 85 | 150 | 49.00 | 3.570 | |
| 33218 | 90 | 160 | 55.00 | 4.620 | |
| 33219 | 95 | 170 | 58.00 | 5.460 | |
| 33220 | 100 | 180 | 63.00 | 6.730 | |
| 33221 | 105 | 190 | 68.00 | 8.380 | |
| Additional information: Metric size (mm) and Inch size (inch) tapered roller bearing; Cage: iron; Inch size: L, LM, H, HH, HM series etc.. 1 inch = 25.4 mm; | |||||
| Inch size series | d mm | D mm | T mm | ≈ KGS | |
| 19067/09195 | 20.600 | 49.200 | 19.800 | 0.155 | |
| 09081/09195 | 20.600 | 49.200 | 21.500 | 0.177 | |
| 07097/07196 | 25.000 | 50.000 | 14.300 | 0.119 | |
| 07100/07196 | 25.400 | 50.005 | 13.495 | 0.119 | |
| 02475/02420 | 31.750 | 68.260 | 22.225 | 0.375 | |
| 17580/17520 | 15.800 | 42.900 | 16.700 | 0.110 | |
| 1755/1729 | 22.220 | 56.890 | 19.360 | 0.258 | |
| 1280/1220 | 22.225 | 57.150 | 22.225 | 0.286 | |
| 15100/15245 | 25.400 | 62.000 | 19.050 | 0.286 | |
| 15101/15243 | 25.400 | 62.000 | 19.050 | 0.286 | |
| 15101/15244 | 25.400 | 62.000 | 20.638 | 0.286 | |
| 15101/15245 | 25.400 | 62.000 | 19.050 | 0.286 | |
| 15101/15250 | 25.400 | 62.000 | 20.638 | 0.286 | |
| 15102/15245 | 25.400 | 62.000 | 20.638 | 0.286 | |
| 15103S/15243 | 26.000 | 62.000 | 19.000 | 0.277 | |
| 15103S/15245 | 16.162 | 57.150 | 19.050 | 0.279 | |
| 15578/15520 | 26.900 | 57.100 | 17.000 | 0.200 | |
| 15580/15520 | 26.900 | 57.150 | 17.000 | 0.211 | |
| 15106/15245 | 26.988 | 61.913 | 19.050 | 0.211 | |
| 15112/15245 | 28.575 | 61.913 | 19.050 | 0.211 | |
| 15590/15520 | 28.600 | 57.200 | 17.500 | 0.196 | |
| 15117/15245 | 29.987 | 62.000 | 19.050 | 0.196 | |
| 15116/15245 | 30.112 | 62.000 | 19.050 | 0.196 | |
| 15120/15250 | 30.200 | 63.500 | 20.638 | 0.196 | |
| 15118/15245 | 30.213 | 62.000 | 19.050 | 0.196 | |
| 15118/15250 | 30.213 | 63.500 | 20.638 | 0.196 | |
| 15119/15245 | 30.213 | 62.000 | 19.050 | 0.196 | |
| 15120/15245 | 30.213 | 62.000 | 19.050 | 0.196 | |
| 18120/15250 | 30.213 | 63.500 | 20.638 | 0.196 | |
| 14116/14276 | 30.226 | 69.012 | 19.583 | 0.365 | |
| 14124/14274 | 31.750 | 69.012 | 19.845 | 0.341 | |
| 14124/14276 | 31.750 | 69.012 | 19.845 | 0.341 | |
| 15125/15245 | 31.750 | 62.000 | 19.050 | 0.341 | |
| 15126/15245 | 31.750 | 62.000 | 19.050 | 0.341 | |
| 12125A/14276 | 31.750 | 69.012 | 19.845 | 0.341 | |
| 14125A/14274 | 31.750 | 69.012 | 19.845 | 0.344 | |
| 14125A/14276 | 31.750 | 69.010 | 19.840 | 0.349 | |
| 14130/14274 | 33.338 | 69.012 | 19.845 | 0.349 | |
| 14130/14276 | 33.338 | 69.012 | 19.845 | 0.349 | |
| 141317/14276 | 33.338 | 69.012 | 19.845 | 0.310 | |
| 14585/14525 | 34.925 | 68.262 | 20.638 | 0.317 | |
| 14136A/14276 | 34.925 | 69.012 | 26.853 | 0.361 | |
| 14137A/14274 | 34.925 | 69.012 | 19.845 | 0.320 | |
| 14137A/14276 | 34.925 | 69.012 | 19.845 | 0.318 | |
| 14138A/14276 | 34.925 | 69.012 | 19.845 | 0.324 | |
| 1779/1729 | 34.930 | 56.900 | 19.840 | 0.249 | |
| 16137/16282 | 34.930 | 71.990 | 20.640 | 0.374 | |
| 14139/14276 | 34.976 | 69.012 | 19.845 | 0.346 | |
| 13687/13620 | 38.000 | 69.012 | 19.050 | 0.297 | |
| 16150/16282 | 38.100 | 72.000 | 19.000 | 0.330 | |
| 17887/17831 | 45.230 | 79.980 | 19.850 | 0.410 | |
| 15113/15245 | 58.575 | 62.000 | 20.638 | 0.280 | |
| 23100/23256 | 25.400 | 65.090 | 22.230 | 0.358 | |
| 2578/2523 | 28.575 | 69.850 | 23.812 | 0.512 | |
| 2559/2523B | 30.162 | 69.850 | 23.812 | 0.480 | |
| 2558/2523 | 30.162 | 69.850 | 23.812 | 0.400 | |
| 2580/2520 | 31.750 | 66.421 | 25.400 | 0.400 | |
| 2582/2523 | 31.750 | 68.850 | 23.812 | 0.478 | |
| 2578/23 | 33.338 | 69.850 | 83.812 | 0.435 | |
| 2581/2523 | 33.338 | 69.850 | 23.812 | 0.444 | |
| 2585/2523 | 33.338 | 69.850 | 23.812 | 0.436 | |
| 2785/2720 | 33.338 | 76.200 | 23.812 | 0.550 | |
| 2585/2520 | 33.340 | 66.420 | 25.360 | 0.400 | |
| 2793/2729 | 34.487 | 76.200 | 23.812 | 0.530 | |
| 2786/2720 | 34.925 | 76.200 | 23.812 | 0.500 | |
| 2793/2720 | 34.925 | 76.200 | 23.812 | 0.500 | |
| 2796/2720 | 34.925 | 76.200 | 23.812 | 0.530 | |
| 25877/25820 | 34.925 | 73.023 | 23.812 | 0.476 | |
| 25877/25821 | 34.925 | 73.025 | 23.812 | 0.500 | |
| 25878/25820 | 34.925 | 73.023 | 23.812 | 0.476 | |
| 25878/25821 | 34.925 | 73.025 | 23.812 | 0.487 | |
| 26883/26822 | 35.500 | 79.375 | 23.812 | 0.600 | |
| 2794/2720 | 36.487 | 76.200 | 23.812 | 0.520 | |
| 25880/25821 | 36.487 | 73.025 | 23.812 | 0.473 | |
| 25570/25520 | 36.510 | 82.930 | 23.812 | 0.675 | |
| 26877/26822 | 36.512 | 79.375 | 23.812 | 0.600 | |
| 2788/2720 | 38.100 | 76.200 | 23.810 | 0.455 | |
| 2788/2729 | 38.100 | 76.200 | 23.800 | 0.496 | |
| 2790/2729 | 38.100 | 76.200 | 23.800 | 0.555 | |
| 25572/25520 | 38.100 | 92.900 | 23.810 | 0.656 | |
| 26878/26822 | 38.100 | 79.375 | 23.812 | 0.584 | |
| 27880/27820 | 38.100 | 80.040 | 24.610 | 0.563 | |
| 2789/2720 | 39.688 | 76.200 | 23.812 | 0.482 | |
| 26880/26822 | 39.688 | 79.375 | 23.812 | 0.569 | |
| 26881/26822 | 39.688 | 79.375 | 23.812 | 0.559 | |
| 26881/26823 | 39.688 | 76.200 | 25.400 | 0.525 | |
| 24780/24721 | 41.275 | 76.200 | 25.400 | 0.485 | |
| 26882/26820 | 41.275 | 80.167 | 25.400 | 0.569 | |
| 26882/26822 | 41.275 | 79.375 | 23.812 | 0.536 | |
| 26882/26823 | 41.275 | 76.200 | 25.400 | 0.499 | |
| 26882/26824 | 41.275 | 80.000 | 23.812 | 0.545 | |
| 26885/26822 | 41.275 | 79.375 | 23.810 | 0.524 | |
| 26882/26522A | 241.275 | 79.375 | 23.812 | 0.562 | |
| 25577/25522 | 42.800 | 82.900 | 23.800 | 0.599 | |
| 25578/25520 | 42.862 | 82.931 | 23.812 | 0.593 | |
| 25577/25520 | 42.875 | 82.931 | 23.812 | 0.598 | |
| 25577/25521 | 42.875 | 83.058 | 23.812 | 0.538 | |
| 26884/26823 | 42.875 | 76.200 | 25.400 | 0.483 | |
| 26884/26824 | 42.875 | 80.000 | 25.400 | 0.538 | |
| 26886/26822 | 42.875 | 79.375 | 23.812 | 0.499 | |
| 25580/25521 | 44.450 | 82.931 | 23.812 | 0.570 | |
| 25581/25520 | 44.450 | 82.931 | 23.812 | 0.570 | |
| 25582/25520 | 44.450 | 82.931 | 23.812 | 0.565 | |
| 25581/25521 | 44.500 | 82.900 | 23.800 | 0.563 | |
| 25584/25520 | 44.983 | 83.058 | 23.812 | 0.565 | |
| 25584/25521 | 44.983 | 83.058 | 23.812 | 0.546 | |
| 25590/25519 | 45.618 | 83.100 | 23.812 | 0.545 | |
| 25590/25521 | 45.618 | 82.931 | 23.812 | 0.551 | |
| 25590/25523 | 45.618 | 82.931 | 26.983 | 0.582 | |
| 25590/25526 | 45.618 | 85.000 | 23.812 | 0.590 | |
| 28580/28521 | 50.000 | 92.100 | 24.600 | 0.697 | |
| 28678/28622B | 50.000 | 101.500 | 24.600 | 0.865 | |
| 28584/28521 | 52.388 | 92.075 | 24.608 | 0.674 | |
| 28680/28622 | 55.562 | 97.630 | 24.608 | 0.760 | |
| 28682/28622 | 57.150 | 97.630 | 24.610 | 0.755 | |
| 28985/28920 | 60.325 | 101.600 | 25.400 | 0.851 | |
| 28985/28921 | 60.325 | 100.000 | 25.400 | 0.812 | |
| 28995/28921 | 62.800 | 101.600 | 25.400 | 0.740 | |
| 29585/29520 | 63.500 | 107.950 | 25.400 | 0.740 | |
| 29585/29521 | 63.500 | 110.000 | 25.400 | 0.982 | |
| 29586/29520 | 63.500 | 107.950 | 25.400 | 0.914 | |
| 29590/29521 | 66.675 | 110.000 | 25.400 | 0.925 | |
| 29675/29630 | 69.850 | 120.650 | 25.400 | 1.150 | |
| 26884/26820 | 72.875 | 80.167 | 25.400 | 1.150 | |
| 29685/29620 | 73.025 | 112.712 | 25.400 | 0.878 | |
| 29688/29620 | 73.817 | 112.712 | 25.400 | 0.870 | |
| 27687/27620 | 82.550 | 125.412 | 25.400 | 1.100 | |
| 240KBE031+L | 240.000 | 400.000 | 160.000 | 75.000 | |
| 250KVE3601 | 82.500 | 365.000 | 270.000 | 91.000 | |
| 31594/31520 | 34.925 | 76.200 | 29.370 | 0.632 | |
| 3390/20 | 38.100 | 79.325 | 29.369 | 0.651 | |
| 3786/20 | 38.100 | 85.725 | 30.162 | 0.695 | |
| 3381/3320 | 38.100 | 80.167 | 29.370 | 0.721 | |
| 3382/3320 | 39.688 | 80.167 | 29.370 | 0.755 | |
| 3382/3321 | 39.688 | 77.534 | 29.370 | 0.782 | |
| 3382/3331 | 39.688 | 80.167 | 29.370 | 0.796 | |
| 3382/3339 | 39.688 | 80.167 | 29.370 | 0.796 | |
| 3386/3320 | 39.688 | 80.167 | 29.370 | 0.796 | |
| 3384/3320 | 41.275 | 80.167 | 29.370 | 0.796 | |
| 3577/3520 | 41.275 | 84.138 | 30.162 | 0.752 | |
| 3877/3820 | 41.275 | 85.725 | 30.162 | 0.793 | |
| 3579/3525 | 42.780 | 87.280 | 30.162 | 0.793 | |
| 3574/25 | 42.860 | 87.300 | 30.160 | 0.806 | |
| 35BC | 43.655 | 0.000 | 0.000 | 0.061 | |
| 3777/3720 | 44.083 | 93.264 | 30.162 | 0.930 | |
| 355/354A | 44.450 | 85.000 | 20.638 | 0.820 | |
| 3578/3525 | 44.450 | 87.312 | 30.162 | 0.789 | |
| 3782/3720 | 44.450 | 92.260 | 23.820 | 0.936 | |
| 3782/3730 | 44.450 | 93.264 | 30.162 | 0.945 | |
| 33885/33822 | 44.450 | 95.250 | 28.580 | 0.977 | |
| 3776/3720 | 44.983 | 93.264 | 30.162 | 0.977 | |
| 358/354 | 45.000 | 80.000 | 20.638 | 0.523 | |
| 367/362 | 45.000 | 90.000 | 20.000 | 0.601 | |
| 358/354A | 45.000 | 85.000 | 20.638 | 0.601 | |
| 3778/3720 | 47.625 | 93.264 | 30.162 | 0.601 | |
| 3781/3720 | 49.212 | 93.264 | 30.162 | 0.601 | |
| 368/363 | 50.000 | 90.000 | 20.000 | 0.557 | |
| 368/362A | 50.000 | 88.900 | 20.138 | 0.517 | |
| 368/362 | 50.800 | 88.900 | 20.638 | 0.517 | |
| 368/362x | 50.800 | 90.000 | 22.230 | 0.595 | |
| 368A/362A | 50.800 | 88.900 | 20.638 | 0.520 | |
| 368S/362A | 50.800 | 88.900 | 22.230 | 0.503 | |
| 3775/3720 | 50.800 | 93.264 | 30.162 | 0.503 | |
| 3775/3730 | 50.800 | 93.264 | 30.162 | 0.870 | |
| 3780/3726 | 50.800 | 93.264 | 30.162 | 0.870 | |
| 3780/3726 | 50.800 | 95.250 | 30.162 | 0.870 | |
| 3780/3730 | 50.800 | 93.264 | 30.162 | 0.870 | |
| 3780/3732 | 50.800 | 98.425 | 30.162 | 0.870 | |
| 3784/3720 | 50.800 | 93.264 | 30.162 | 0.870 | |
| 385A/382A | 50.800 | 96.840 | 21.000 | 0.693 | |
| 33889/33821 | 50.800 | 95.200 | 27.800 | 0.862 | |
| 33889/33822 | 50.800 | 95.250 | 28.580 | 0.866 | |
| 3780/3720/P6 | 50.800 | 93.300 | 30.162 | 0.870 | |
| 3767/3720 | 52.388 | 93.264 | 30.162 | 0.870 | |
| 389A/382A | 53.975 | 96.838 | 21.000 | 0.870 | |
| 33895/33822 | 53.975 | 95.250 | 27.782 | 0.819 | |
| 39578/39520 | 53.975 | 112.712 | 30.162 | 0.819 | |
| 32310/32355 | 55.000 | 110.000 | 42.250 | 1.710 | |
| 387A/382A | 57.150 | 96.838 | 21.000 | 0.599 | |
| 387A/383A | 57.150 | 100.000 | 21.000 | 0.599 | |
| 3979/3920 | 57.150 | 112.712 | 30.162 | 0.599 | |
| 33225/33462 | 57.150 | 117.475 | 38.000 | 0.599 | |
| 39580/39520 | 57.150 | 112.712 | 30.162 | 1.380 | |
| 39580/39528 | 57.150 | 119.985 | 32.750 | 1.740 | |
| 39581/39520 | 57.150 | 112.712 | 30.162 | 1.420 | |
| 390/394A | 57.200 | 110.000 | 22.000 | 0.845 | |
| 3981/3920 | 58.738 | 112.712 | 30.162 | 0.845 | |
| 3977/3920 | 60.000 | 112.715 | 30.162 | 0.845 | |
| 3980/3920 | 60.325 | 112.712 | 30.162 | 0.845 | |
| 3892/3920 | 63.500 | 112.721 | 30.162 | 1.260 | |
| 3982/3920 | 63.500 | 112.712 | 30.162 | 1.260 | |
| 33251/33472 | 63.500 | 120.000 | 41.000 | 2.020 | |
| 3984/3920 | 66.675 | 112.712 | 30.048 | 1.160 | |
| 3994/3920 | 66.675 | 112.712 | 30.163 | 1.160 | |
| 33262/33462 | 66.675 | 117.475 | 30.162 | 2.020 | |
| 33269/33462 | 68.262 | 117.475 | 30.162 | 1.272 | |
| 33275/33462 | 69.851 | 117.475 | 30.162 | 1.272 | |
| 33275/33472 | 69.900 | 120.000 | 29.794 | 1.370 | |
| 33281/33462 | 71.438 | 117.415 | 30.162 | 1.029 | |
| 33281/33472 | 71.438 | 120.000 | 29.800 | 1.330 | |
| 37248WF/DPICS130 | 240.000 | 338.000 | 248.000 | 69.000 | |
| 3510/710X2 | 710.000 | 1030.000 | 236.000 | 651.000 | |
| 418/414 | 38.100 | 88.500 | 26.988 | 0.327 | |
| 420/414 | 40.000 | 88.500 | 26.988 | 0.327 | |
| 4395/4335 | 40.070 | 90.490 | 40.390 | 1.235 | |
| 419/414 | 41.275 | 88.500 | 26.988 | 0.679 | |
| 44162/44348 | 41.280 | 88.500 | 23.700 | 0.679 | |
| 460/453 | 44.450 | 104.775 | 30.162 | 1.082 | |
| 460/453A | 44.450 | 107.950 | 247.783 | 1.341 | |
| 463/453X | 47.625 | 104.775 | 30.162 | 1.082 | |
| 467/453X | 47.625 | 104.775 | 30.160 | 1.082 | |
| 469/453X | 50.800 | 107.590 | 27.783 | 1.230 | |
| 466/453X | 52.388 | 104.775 | 30.162 | 1.068 | |
| 468/453X | 52.388 | 104.775 | 30.162 | 1.068 | |
| 456/453X | 53.975 | 104.775 | 30.162 | 1.068 | |
| 45291/45220 | 57.150 | 104.780 | 30.960 | 1.065 | |
| 483/472A | 63.500 | 120.000 | 29.002 | 1.320 | |
Leave your messages
Related News
Keko 25-5811-111
2025-09-22
HGF‘s new market blueprint
2022-11-17
Submitted successfully
We will contact you as soon as possible
Close
