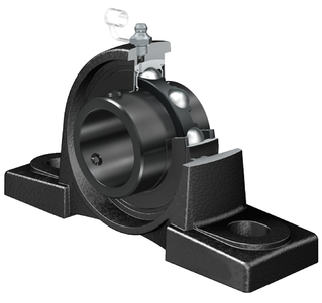

PILLOW BLOCK BEARING

QQ图片20250624111010.png QQ图片20250624110946.png QQ图片20250624111104.png QQ图片20250624111034.png

Contact Now

Product Details


UCP Series	d	L	H	W	≈ KGS
UCP201	12	127	62	31	0.640
UCP202	15	127	62	31	0.620
UCP203	17	127	62	31	0.610
UCP204	20	127	65	31	0.690
UCP205	25	140	71	34.1	0.856
UCP206	30	165	83	38.1	1.349
UCP207	35	167	93	42.9	1.648
UCP208	40	184	98	49.2	1.915
UCP209	45	190	106	49.2	2.291
UCP210	50	206	114	51.6	2.806
UCP211	55	219	126	55.6	3.592
UCP212	60	241	138	65.1	4.719
UCP213	65	265	151	65.1	5.550
UCP214	70	266	157	74.6	6.100
UCP215	75	275	163	77.8	6.680
UCP216	80	292	175	82.6	8.400
UCP217	85	310	187	85.7	10.200
UCP218	90	327	200	96	12.200
UCP220	100	380	225	108	16.000
UCP305	25	175	85	38	1.700
UCP306	30	180	95	43	2.200
UCP307	35	210	106	48	3.000
UCP308	40	220	116	52	3.650
UCP309	45	245	129	57	4.900
UCP310	50	275	143	61	6.600
UCP311	55	310	154	66	8.000
UCP312	60	330	165	71	9.900
UCP313	65	340	176	75	10.700
UCP314	70	360	187	78	12.400
UCP315	75	380	198	82	15.900
UCP316	80	400	210	86	18.500
UCP317	85	420	220	96	20.300
UCP318	90	430	235	96	22.800
UCP319	95	470	250	103	29.000
UCP320	100	490	275	108	37.000
UCP321	105	490	280	112	37.600
UCP322	110	520	300	117	44.000
UCP324	120	570	320	126	54.970
UCP326	130	600	355	135	71.480
UCP328	140	620	390	145	87.480


UCF Series	d	L	H	W	≈ KGS
UCF201	12	86	33.3	31	0.600
UCF202	15	86	33.3	31	0.620
UCF203	17	86	33.3	31	0.590
UCF204	20	86	33.3	31	0.597
UCF205	25	95	35.8	34.1	0.876
UCF206	30	108	40.2	38.1	1.110
UCF207	35	117	44.4	42.9	1.524
UCF208	40	130	51.2	49.2	1.934
UCF209	45	137	52.2	49.2	2.300
UCF210	50	143	54.6	51.6	2.601
UCF211	55	163	58.4	55.6	3.431
UCF212	60	175	68.7	65.1	4.394
UCF213	65	187	69.7	65.1	4.900
UCF214	70	193	75.4	74.6	5.920
UCF215	75	200	78.5	77.8	6.700
UCF216	80	208	83.3	82.6	7.400
UCF217	85	220	87.6	85.7	9.100
UCF218	90	235	96.3	96	10.700
UCF305	25	110	39	38	1.120
UCF306	30	125	44	43	1.750
UCF307	35	135	49	48	2.100
UCF308	40	150	56	52	3.000
UCF309	45	160	60	57	3.800
UCF310	50	175	67	61	5.050
UCF311	55	185	71	66	5.500
UCF312	60	195	78	71	7.000
UCF313	65	208	78	75	7.800
UCF314	70	226	81	78	10.100
UCF315	75	236	89	82	11.600
UCF316	80	250	90	86	15.400
UCF317	85	260	100	96	15.560
UCF318	90	280	100	96	18.900
UCF319	95	290	121	103	22.800
UCF320	100	310	125	108	26.100
UCF322	110	340	131	117	34.900
UCF324	120	370	140	126	46.800
UCF326	130	410	146	135	62.600
UCF328	140	450	161	145	85.500


UCFL Series	d	L	H	W	≈ KGS
UCFL201	12	113	33.3	31	0.468
UCFL202	15	113	33.3	31	0.490
UCFL203	17	113	33.3	31	0.470
UCFL204	20	113	33.3	31	0.450
UCFL205	25	130	35.8	34.1	0.640
UCFL206	30	148	40.2	38.1	0.890
UCFL207	35	161	44.4	42.9	1.200
UCFL208	40	175	51.2	49.2	1.500
UCFL209	45	188	52.2	49.2	1.800
UCFL210	50	197	54.6	51.6	2.150
UCFL211	55	224	58.4	55.6	3.100
UCFL212	60	250	68.7	65.1	3.950
UCFL213	65	258	69.7	65.1	4.850
UCFL214	70	265	75.4	74.6	5.450
UCFL215	75	275	78.5	77.8	5.950
UCFL216	80	290	83.3	82.6	7.500
UCFL217	85	305	87.6	85.7	8.750
UCFL218	90	320	96.3	96	11.300
UCFL305	25	150	39	38	1.100
UCFL306	30	180	44	43	0.540
UCFL307	35	185	49	48	1.800
UCFL308	40	200	56	52	0.960
UCFL309	45	230	60	57	1.300
UCFL310	50	240	67	61	4.400
UCFL311	55	250	71	66	5.500
UCFL312	60	270	78	71	6.500
UCFL313	65	295	78	75	7.800
UCFL314	70	315	81	78	10.100
UCFL315	75	320	89	82	11.600
UCFL316	80	355	90	86	15.400
UCFL317	85	370	100	96	16.670
UCFL318	90	385	100	96	18.900
UCFL319	95	405	121	103	29.000
UCFL320	100	440	125	108	29.800
UCFL322	110	470	131	117	33.050
UCFL324	120	520	140	126	46.470
UCFL326	130	550	146	135	57.380
UCFL328	140	600	161	145	79.080


UCT Series	d	L	H	W	≈ KGS
UCT201	12	94	89	31	0.810
UCT202	15	94	89	31	0.790
UCT203	17	94	89	31	0.800
UCT204	20	94	89	31	0.700
UCT205	25	97	89	34.1	0.790
UCT206	30	113	102	38.1	1.200
UCT207	35	129	102	42.9	1.600
UCT208	40	144	114	49.2	2.350
UCT209	45	144	117	49.2	2.350
UCT210	50	149	117	51.6	2.500
UCT211	55	171	146	55.6	3.900
UCT212	60	194	146	65.1	4.750
UCT213	65	224	167	65.1	6.700
UCT214	70	224	167	74.6	6.900
UCT215	75	232	167	77.8	7.200
UCT216	80	235	184	82.6	8.300
UCT217	85	260	198	85.7	10.800
UCT218	90	275	215	96	12.260
UCT305	25	122	89	38	1.400
UCT306	30	137	100	43	1.800
UCT307	35	150	111	48	2.300
UCT308	40	162	124	52	3.000
UCT309	45	178	138	57	4.100
UCT310	50	192	151	61	4.900
UCT311	55	207	163	66	6.100
UCT312	60	220	178	71	7.600
UCT313	65	238	190	75	9.300
UCT314	70	252	202	78	11.100
UCT315	75	262	216	82	13.000
UCT316	80	282	230	86	16.200
UCT317	85	298	240	96	19.000
UCT318	90	312	255	96	21.600
UCT319	95	322	270	103	24.900
UCT320	100	345	290	108	30.700
UCT322	110	385	320	117	39.400
UCT324	120	432	355	126	54.200
UCT326	130	465	385	135	68.400
UCT328	140	515	415	145	82.900

UCF Series	d	L	H	W	≈ KGS
UCF201	12	86	33.3	31	0.600
UCF202	15	86	33.3	31	0.620
UCF203	17	86	33.3	31	0.590
UCF204	20	86	33.3	31	0.597
UCF205	25	95	35.8	34.1	0.876
UCF206	30	108	40.2	38.1	1.110
UCF207	35	117	44.4	42.9	1.524
UCF208	40	130	51.2	49.2	1.934
UCF209	45	137	52.2	49.2	2.300
UCF210	50	143	54.6	51.6	2.601
UCF211	55	163	58.4	55.6	3.431
UCF212	60	175	68.7	65.1	4.394
UCF213	65	187	69.7	65.1	4.900
UCF214	70	193	75.4	74.6	5.920
UCF215	75	200	78.5	77.8	6.700
UCF216	80	208	83.3	82.6	7.400
UCF217	85	220	87.6	85.7	9.100
UCF218	90	235	96.3	96	10.700
UCF305	25	110	39	38	1.120
UCF306	30	125	44	43	1.750
UCF307	35	135	49	48	2.100
UCF308	40	150	56	52	3.000
UCF309	45	160	60	57	3.800
UCF310	50	175	67	61	5.050
UCF311	55	185	71	66	5.500
UCF312	60	195	78	71	7.000
UCF313	65	208	78	75	7.800
UCF314	70	226	81	78	10.100
UCF315	75	236	89	82	11.600
UCF316	80	250	90	86	15.400
UCF317	85	260	100	96	15.560
UCF318	90	280	100	96	18.900
UCF319	95	290	121	103	22.800
UCF320	100	310	125	108	26.100
UCF322	110	340	131	117	34.900
UCF324	120	370	140	126	46.800
UCF326	130	410	146	135	62.600
UCF328	140	450	161	145	85.500
