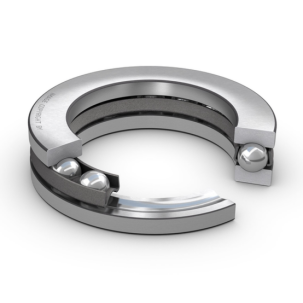

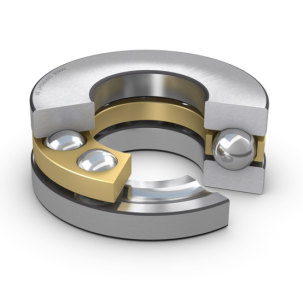

THRUST BALL BEARING

QQ图片20250624110613.png QQ图片20250624110624.png

Contact Now

Product Details


511 Series		d mm	D mm	T mm	≈ KGS
511 Series		d mm	D mm	T mm	≈ KGS
51100	51100 M	10	24	9	0.02
51101	51101 M	12	26	9	0.02
51102	51102 M	15	28	9	0.03
51103	51103 M	17	30	9	0.03
51104	51104 M	20	35	10	0.04
51105	51105 M	25	42	11	0.06
51106	51106 M	30	47	11	0.07
51107	51107 M	35	52	12	0.09
51108	51108 M	40	60	13	0.12
51109	51109 M	45	65	14	0.15
51110	51110 M	50	70	14	0.16
51111	51111 M	55	78	16	0.24
51112	51112 M	60	85	17	0.29
51113	51113 M	65	90	18	0.34
51114	51114 M	70	95	18	0.35
51115	51115 M	75	100	19	0.39
51116	51116 M	80	105	19	0.42
51117	51117 M	85	110	19	0.44
51118	51118 M	90	120	22	0.65
51120	51120 M	100	135	25	0.99
51122	51122 M	110	145	25	1.06
51124	51124 M	120	155	25	1.12
51126	51126 M	130	170	30	1.76
51128	51128 M	140	180	31	1.85
51130	51130 M	150	190	31	2.12
51132	51132 M	160	200	31	2.26
51134	51134 M	170	215	34	2.98
51136	51136 M	180	225	34	3.01
51138	51138 M	190	240	37	4.06
51140	51140 M	200	250	37	4.26
51144	51144 M	220	270	37	4.51
51148	51148 M	240	300	45	7.51
51152	51152 M	260	320	45	8.03
51156	51156 M	280	350	53	11.88
51160	51160 M	300	380	62	17.10
51164	51164 M	320	400	63	19.00
51168	51168 M	340	420	64	19.60
51172	51172 M	360	440	65	21.00
51176	51176 M	380	460	65	21.84
51180	51180 M	400	480	65	23.10
51184	51184 M	420	500	65	25.00
51188	51188 M	440	540	80	40.00
51192	51192 M	460	560	80	41.00
51196	51196 M	480	580	80	43.10
512 Series		d mm	D mm	T mm	≈ KGS
512 Series		d mm	D mm	T mm	≈ KGS
51200	51200M	10	26	11	0.03
51201	51201 M	12	28	11	0.03
51202	51202 M	15	32	12	0.05
51203	51203 M	17	35	12	0.05
51204	51204 M	20	40	14	0.08
51205	51205 M	25	47	15	0.12
51206	51206 M	30	52	16	0.13
51207	51207 M	35	62	18	0.22
51208	51208 M	40	68	19	0.27
51209	51209 M	45	73	20	0.32
51210	51210 M	50	78	22	0.39
51211	51211 M	55	90	25	0.56
51212	51212 M	60	95	26	0.65
51213	51213 M	65	100	27	0.73
51214	51214 M	70	105	27	0.77
51215	51215 M	75	110	27	0.80
51216	51216 M	80	115	28	0.91
51217	51217 M	85	125	31	1.22
51218	51218 M	90	135	35	1.68
51219	51219 M	95	140	40	2.00
51220	51220 M	100	150	38	2.15
51222	51222 M	110	160	38	2.34
51224	51224 M	120	170	39	2.66
51226	51226 M	130	190	45	3.95
51228	51228 M	140	200	46	4.27
51230	51230 M	150	215	50	5.94
51232	51232 M	160	225	51	6.54
51234	51234 M	170	240	55	8.13
51236	51236 M	180	250	56	8.40
51238	51238 M	190	270	62	11.44
51240	51240 M	200	280	62	11.94
51244	51244 M	220	300	63	13.00
51248	51248 M	240	340	78	22.70
51252	51252 M	260	360	79	24.00
51256	51256 M	280	380	80	26.00
51260	51260 M	300	420	95	43.00
51264	51264 M	320	440	95	44.12
51268	51268 M	340	460	96	48.00
51272	51272 M	360	500	110	68.10
51276	51276 M	380	520	112	67.00
51280	51280 M	400	540	112	45.50
51284	51284 M	420	580	130	110.00
51288	51288 M	440	600	130	115.00
51292	51292 M	460	620	130	116.00
51296	51296 M	480	650	135	130.00
513 Series		d mm	D mm	T mm	≈ KGS
513 Series		d mm	D mm	T mm	≈ KGS
51302	51302 M	15	37	15	0.01
51303	51303 M	17	40	16	0.11
51304	51304 M	20	47	18	0.15
51305	51305 M	25	52	18	0.17
51306	51306 M	30	60	21	0.25
51307	51307 M	35	68	24	0.30
51308	51308 M	40	78	26	0.55
51309	51309 M	45	85	28	0.64
51310	51310 M	50	95	31	0.94
51311	51311 M	55	105	35	1.29
51312	51312 M	60	110	35	1.37
51313	51313 M	65	115	36	1.47
51314	51314 M	70	125	40	1.98
51315	51315 M	75	135	44	2.52
51316	51316 M	80	140	44	2.67
51317	51317 M	85	150	49	3.42
51318	51318 M	90	155	50	3.67
51319	51319 M	95	160	52	3.88
51320	51320 M	100	170	55	4.83
51322	51322 M	110	190	63	7.82
51324	51324 M	120	210	70	10.41
51326	51326 M	130	225	75	12.92
51328	51328 M	140	240	80	15.56
51330	51330 M	150	250	80	16.27
51332	51332 M	160	270	87	20.64
51334	51334 M	170	280	87	21.51
51336	51336 M	180	300	95	28.00
51338	51338 M	190	320	105	35.00
51340	51340 M	200	340	110	43.00
51344	51344M	220	360	112	44.34
51348	51348 M	240	380	112	46.00
51352	51352 M	260	420	130	73.10
51360	51360 M	300	480	140	103.00
51364	51364 M	320	500	140	109.00
514 Series		d mm	D mm	T mm	≈ KGS
514 Series		d mm	D mm	T mm	≈ KGS
51405	51405 M	25	60	24	0.32
51406	51406 M	30	70	28	0.49
51407	51407 M	35	80	32	0.74
51408	51408 M	40	90	36	1.08
51409	51409 M	45	100	39	1.42
51410	51410 M	50	110	43	1.91
51411	51411 M	55	120	48	2.53
51412	51412 M	60	130	51	3.51
51413	51413 M	65	140	56	4.47
51414	51414 M	70	150	60	5.52
51415	51415 M	75	160	65	6.81
51416	51416 M	80	170	68	8.03
51417	51417 M	85	180	72	9.23
51418	51418 M	90	190	77	11.18
51420	51420 M	100	210	85	14.68
51422	51422 M	110	230	95	20.00
51424	51424 M	120	250	102	25.40
51426	51426 M	130	270	110	32.02
51428	51428 M	140	280	112	34.50
51430	51430 M	150	300	120	42.50
51432	51432 M	160	320	130	51.20
51434	51434 M	170	340	135	55.80
51436	51436 M	180	360	140	69.50
51438	51438 M	190	380	150	84.50
51440	51440 M	200	400	155	91.30
51444	51444 M	220	420	160	106.00
51448	51448 M	245	440	160	107.27
51452	51452 M	260	480	175	135.00
522 Series		d mm	D mm	T mm	≈ KGS
522 Series		d mm	D mm	T mm	≈ KGS
52202	52202 M	10	32	22	0.08
52203	52203 M	17	35	13.2	0.10
52204	52204 M	15	40	26	0.14
52205	52205 M	20	47	28	0.21
52206	52206 M	25	52	29	0.25
52207	52207 M	30	62	34	0.41
52208	52208 M	30	68	36	0.54
52209	52209 M	35	73	37	0.57
52210	52210 M	40	78	39	0.68
52211	52211 M	45	90	45	1.03
52212	52212 M	50	95	46	1.12
52213	52213 M	55	100	47	1.28
52214	52214 M	55	105	47	1.40
52215	52215 M	60	110	47	1.49
52216	52216 M	65	115	48	1.57
52217	52217 M	70	125	55	2.22
52218	52218 M	75	135	62	3.06
52220	52220 M	85	150	67	3.90
52222	52222 M	95	160	67	4.22
52224	52224 M	100	170	68	4.83
52226	52226 M	110	190	80	7.05
52228	52228 M	120	200	81	7.97
52230	52230 M	130	215	89	11.46
52232	52232 M	140	225	90	12.25
52234	52234 M	150	240	97	14.74
52236	52236 M	150	250	98	16.30
52238	52238 M	160	270	109	22.10
52240	52240 M	170	280	109	22.91
52244	52244 M	190	300	110	25.20
523 Series		d mm	D mm	T mm	≈ KGS
523 Series		d mm	D mm	T mm	≈ KGS
52305	52305 M	20	52	34	0.29
52306	52306 M	25	60	38	0.44
52307	52307 M	30	68	44	0.63
52308	52308 M	30	78	49	1.06
52309	52309 M	35	85	52	1.24
52310	52310 M	40	95	58	1.68
52311	52311 M	45	105	64	2.31
52312	52312 M	50	110	64	2.49
52313	52313 M	55	115	65	2.65
52314	52314 M	55	125	72	3.94
52315	52315 M	60	135	79	4.69
52316	52316 M	65	140	79	4.82
52317	52317 M	70	150	87	6.20
52318	52318 M	75	155	88	6.46
52320	52320 M	85	170	97	8.52
52322	52322 M	95	190	110	13.81
52324	52324 M	100	210	123	19.34
52326	52326 M	130	225	130	22.00
52328	52328 M	120	240	140	28.30
52330	52330 M	130	250	140	29.31
52332	52332 M	140	270	153	38.20
52334	52334 M	150	280	153	39.90
52336	52336 M	150	300	165	46.50
52338	52338 M	160	320	183	66.40
52340	52340 M	200	340	192	78.00
524 Series		d mm	D mm	T mm	≈ KGS
52405	52405 M	15	60	45	0.63
52406	52406 M	20	70	52	0.91
52407	52407 M	25	80	59	1.44
52408	52408 M	30	90	65	2.03
52409	52409 M	35	100	72	2.64
52410	52410 M	40	110	78	3.56
52411	52411 M	45	120	87	4.70
52412	52412 M	50	130	93	6.33
52413	52413 M	50	140	101	8.03
52414	52414 M	55	150	107	9.71
52415	52415 M	60	160	115	11.80
52416	52416 M	65	170	120	14.80
52417	52417 M	65	180	128	18.60
52418	52418 M	70	190	135	20.80
52420	52420 M	80	210	150	28.20
52422	52422 M	90	230	166	37.80
52424	52424 M	95	250	177	48.40
52426	52426 M	100	270	192	56.50
52428	52428 M	140	280	196	60.60
52430	52430 M	150	300	209	73.90
52432	52432 M	160	320	226	90.50
52434	52434 M	170	340	236	108.00
52436	52436 M	180	360	245	126.00
532 Series		d mm	D mm	T mm	≈ KGS
532 Series		d mm	D mm	T mm	≈ KGS
53200	53200 M	10	26	11.6	0.03
53201	53201 M	12	28	11.4	0.03
53202	53202 M	15	32	13.3	0.03
53203	53203 M	17	35	13.2	0.06
53204	53204 M	20	40	14.7	0.08
53205	53205 M	25	47	16.7	0.12
53206	53206 M	30	52	17.8	0.15
53207	53207 M	35	62	19.9	0.22
53208	53208 M	40	68	20.3	0.28
53209	53209 M	45	73	21.3	0.29
53210	53210 M	50	78	23.5	0.36
53211	53211 M	55	90	27.3	0.59
53212	53212 M	60	95	28	0.63
53213	53213 M	65	100	28.7	0.73
53214	53214 M	70	105	28.8	0.78
53215	53215 M	75	110	28.3	0.81
53216	53216 M	80	115	29.5	0.88
53217	53217 M	85	125	33.1	1.21
53218	53218 M	90	135	38.5	1.69
53220	53220 M	100	150	40.9	2.23
53222	53222 M	110	160	40.2	2.32
53224	53224 M	120	170	40.8	2.58
53226	53226 M	130	190	47.9	3.90
53228	53228 M	140	200	48.6	4.24
53230	53230 M	150	215	53.3	5.83
53232	53232 M	160	225	54.7	6.32
53234	53234 M	170	240	58.7	7.91
53236	53236 M	180	250	58.2	8.19
53238	53238 M	190	270	65.7	11.26
53240	53240 M	200	280	65.3	11.80
53244	53244 M	220	300	65.6	13.10
53248	53248 M	240	350	81.6	20.90
53252	53252 M	260	360	82.8	29.10
53256	53256 M	280	380	85	31.50
53260	53260 M	300	420	100.5	39.50
53264	53264 M	320	440	100.5	42.00
53268	53268 M	340	460	100.3	46.40
533 Series		d mm	D mm	T mm	≈ KGS
533 Series		d mm	D mm	T mm	≈ KGS
53305	53305 M	25	52	19.8	0.18
53306	53306 M	30	60	22.6	0.26
53307	53307 M	35	68	25.6	0.38
53308	53308 M	40	78	28.5	0.57
53309	53309 M	45	85	30.1	0.68
53310	53310 M	50	95	34.3	0.97
53311	53311 M	55	105	39.3	1.35
53312	53312 M	60	110	38.3	1.37
53313	53313 M	65	115	39.4	1.51
53314	53314 M	70	125	44.2	2.09
53315	53315 M	75	135	48.1	2.60
53316	53316 M	80	140	47.6	2.75
53317	53317 M	85	150	53.1	3.43
53318	53318 M	90	155	54.6	3.71
53320	53320 M	100	170	59.2	4.87
53322	53322 M	110	190	67.2	7.70
53324	53324 M	120	210	74.1	10.37
53326	53326 M	130	225	80.3	12.70
53328	53328 M	140	240	84.9	15.10
53330	53330 M	150	250	83.7	15.71
53332	53332 M	160	270	91.7	20.80
53334	53334 M	170	280	91.3	21.60
53336	53336 M	180	300	99.3	24.07
53338	53338 M	190	320	111	36.50
53340	53340 M	200	340	118.4	42.70
534 Series		d mm	D mm	T mm	≈ KGS
534 Series		d mm	D mm	T mm	≈ KGS
53405	53405 M	25	60	24	0.41
53406	53406 M	30	70	28	0.52
53407	53407 M	35	80	32	0.79
53408	53408 M	40	90	38.2	1.10
53409	53409 M	45	100	42.4	1.77
53410	53410 M	50	110	45.6	1.94
53411	53411 M	55	120	50.5	2.57
53412	53412 M	60	130	54	3.44
53413	53413 M	65	140	60.2	4.47
53414	53414 M	70	150	63.6	5.38
53415	53415 M	75	160	69	6.64
53416	53416 M	80	170	72.2	7.84
53417	53417 M	85	180	77	9.20
53418	53418 M	90	190	81.2	10.70
53420	53420 M	100	210	90	14.50
53422	53422 M	110	230	99.7	22.00
53424	53424 M	120	250	107.3	24.60
53426	53426 M	130	270	115.2	28.00
53428	53428 M	140	280	117	34.50
53430	53430 M	150	300	125.9	40.50
53432	53432 M	160	320	135.3	58.90
53434	53434 M	170	340	141	61.30
53436	53436 M	180	360	148.3	68.80
542 Series		d mm	D mm	T mm	≈ KGS
542 Series		d mm	D mm	T mm	≈ KGS
54202	54202 M	10	32	24.6	0.09
54204	54204 M	15	40	27.4	0.15
54205	54205 M	20	47	31.4	0.22
54206	54206 M	25	52	32.6	0.26
54207	54207 M	30	62	37.8	0.42
54208	54208 M	30	68	38.6	0.51
54209	54209 M	35	73	39.6	0.57
54210	54210 M	40	78	42	0.63
54211	54211 M	45	90	49.6	1.07
54212	54212 M	50	95	50	1.13
54213	54213 M	55	100	50.4	1.53
54214	54214 M	55	105	50.6	1.46
54215	54215 M	60	110	49.6	1.44
54216	54216 M	65	115	51	1.56
54217	54217 M	70	125	59.2	2.19
54218	54218 M	75	135	69	3.03
54220	54220 M	85	150	72.8	3.91
54222	54222 M	95	160	71.4	4.17
54224	54224 M	100	170	71.6	4.66
54226	54226 M	110	190	85.8	7.27
54228	54228 M	120	200	86.2	9.91
54230	54230 M	130	215	95.6	10.22
54232	54232 M	140	225	97.4	11.20
54234	54234 M	150	240	104.4	13.60
54236	54236 M	150	250	102.4	15.53
54238	54238 M	160	270	116.4	21.30
54240	54240 M	170	280	115.6	20.97
54244	54244 M	190	300	115.2	24.00
543 Series		d mm	D mm	T mm	≈ KGS
543 Series		d mm	D mm	T mm	≈ KGS
54305	54305 M	20	52	37.6	0.30
54306	54306 M	25	60	41.2	0.48
54307	54307 M	30	68	47.2	0.67
54308	54308 M	30	78	54	1.10
54309	54309 M	35	85	56.2	1.28
54310	54310 M	40	95	64.6	1.89
54311	54311 M	45	105	72.6	2.53
54312	54312 M	50	110	70.6	2.80
54313	54313 M	50	115	70.6	2.98
54314	54314 M	55	125	80.4	3.77
54315	54315 M	60	135	87.2	4.73
54316	54316 M	65	140	86.2	4.91
54317	54317 M	70	150	95.2	6.22
54318	54318 M	75	155	97.2	6.68
54320	54320 M	85	170	105.4	8.77
54322	54322 M	95	190	118.4	13.81
54324	54324 M	100	210	131.2	18.80
Additional information: Cage: steel cage and brass cage(M) Precision: P0, P6, P5

511 Series		d mm	D mm	T mm	≈ KGS
511 Series		d mm	D mm	T mm	≈ KGS
51100	51100 M	10	24	9	0.02
51101	51101 M	12	26	9	0.02
51102	51102 M	15	28	9	0.03
51103	51103 M	17	30	9	0.03
51104	51104 M	20	35	10	0.04
51105	51105 M	25	42	11	0.06
51106	51106 M	30	47	11	0.07
51107	51107 M	35	52	12	0.09
51108	51108 M	40	60	13	0.12
51109	51109 M	45	65	14	0.15
51110	51110 M	50	70	14	0.16
51111	51111 M	55	78	16	0.24
51112	51112 M	60	85	17	0.29
51113	51113 M	65	90	18	0.34
51114	51114 M	70	95	18	0.35
51115	51115 M	75	100	19	0.39
51116	51116 M	80	105	19	0.42
51117	51117 M	85	110	19	0.44
51118	51118 M	90	120	22	0.65
51120	51120 M	100	135	25	0.99
51122	51122 M	110	145	25	1.06
51124	51124 M	120	155	25	1.12
51126	51126 M	130	170	30	1.76
51128	51128 M	140	180	31	1.85
51130	51130 M	150	190	31	2.12
51132	51132 M	160	200	31	2.26
51134	51134 M	170	215	34	2.98
51136	51136 M	180	225	34	3.01
51138	51138 M	190	240	37	4.06
51140	51140 M	200	250	37	4.26
51144	51144 M	220	270	37	4.51
51148	51148 M	240	300	45	7.51
51152	51152 M	260	320	45	8.03
51156	51156 M	280	350	53	11.88
51160	51160 M	300	380	62	17.10
51164	51164 M	320	400	63	19.00
51168	51168 M	340	420	64	19.60
51172	51172 M	360	440	65	21.00
51176	51176 M	380	460	65	21.84
51180	51180 M	400	480	65	23.10
51184	51184 M	420	500	65	25.00
51188	51188 M	440	540	80	40.00
51192	51192 M	460	560	80	41.00
51196	51196 M	480	580	80	43.10
512 Series		d mm	D mm	T mm	≈ KGS
512 Series		d mm	D mm	T mm	≈ KGS
51200	51200M	10	26	11	0.03
51201	51201 M	12	28	11	0.03
51202	51202 M	15	32	12	0.05
51203	51203 M	17	35	12	0.05
51204	51204 M	20	40	14	0.08
51205	51205 M	25	47	15	0.12
51206	51206 M	30	52	16	0.13
51207	51207 M	35	62	18	0.22
51208	51208 M	40	68	19	0.27
51209	51209 M	45	73	20	0.32
51210	51210 M	50	78	22	0.39
51211	51211 M	55	90	25	0.56
51212	51212 M	60	95	26	0.65
51213	51213 M	65	100	27	0.73
51214	51214 M	70	105	27	0.77
51215	51215 M	75	110	27	0.80
51216	51216 M	80	115	28	0.91
51217	51217 M	85	125	31	1.22
51218	51218 M	90	135	35	1.68
51219	51219 M	95	140	40	2.00
51220	51220 M	100	150	38	2.15
51222	51222 M	110	160	38	2.34
51224	51224 M	120	170	39	2.66
51226	51226 M	130	190	45	3.95
51228	51228 M	140	200	46	4.27
51230	51230 M	150	215	50	5.94
51232	51232 M	160	225	51	6.54
51234	51234 M	170	240	55	8.13
51236	51236 M	180	250	56	8.40
51238	51238 M	190	270	62	11.44
51240	51240 M	200	280	62	11.94
51244	51244 M	220	300	63	13.00
51248	51248 M	240	340	78	22.70
51252	51252 M	260	360	79	24.00
51256	51256 M	280	380	80	26.00
51260	51260 M	300	420	95	43.00
51264	51264 M	320	440	95	44.12
51268	51268 M	340	460	96	48.00
51272	51272 M	360	500	110	68.10
51276	51276 M	380	520	112	67.00
51280	51280 M	400	540	112	45.50
51284	51284 M	420	580	130	110.00
51288	51288 M	440	600	130	115.00
51292	51292 M	460	620	130	116.00
51296	51296 M	480	650	135	130.00
513 Series		d mm	D mm	T mm	≈ KGS
513 Series		d mm	D mm	T mm	≈ KGS
51302	51302 M	15	37	15	0.01
51303	51303 M	17	40	16	0.11
51304	51304 M	20	47	18	0.15
51305	51305 M	25	52	18	0.17
51306	51306 M	30	60	21	0.25
51307	51307 M	35	68	24	0.30
51308	51308 M	40	78	26	0.55
51309	51309 M	45	85	28	0.64
51310	51310 M	50	95	31	0.94
51311	51311 M	55	105	35	1.29
51312	51312 M	60	110	35	1.37
51313	51313 M	65	115	36	1.47
51314	51314 M	70	125	40	1.98
51315	51315 M	75	135	44	2.52
51316	51316 M	80	140	44	2.67
51317	51317 M	85	150	49	3.42
51318	51318 M	90	155	50	3.67
51319	51319 M	95	160	52	3.88
51320	51320 M	100	170	55	4.83
51322	51322 M	110	190	63	7.82
51324	51324 M	120	210	70	10.41
51326	51326 M	130	225	75	12.92
51328	51328 M	140	240	80	15.56
51330	51330 M	150	250	80	16.27
51332	51332 M	160	270	87	20.64
51334	51334 M	170	280	87	21.51
51336	51336 M	180	300	95	28.00
51338	51338 M	190	320	105	35.00
51340	51340 M	200	340	110	43.00
51344	51344M	220	360	112	44.34
51348	51348 M	240	380	112	46.00
51352	51352 M	260	420	130	73.10
51360	51360 M	300	480	140	103.00
51364	51364 M	320	500	140	109.00
514 Series		d mm	D mm	T mm	≈ KGS
514 Series		d mm	D mm	T mm	≈ KGS
51405	51405 M	25	60	24	0.32
51406	51406 M	30	70	28	0.49
51407	51407 M	35	80	32	0.74
51408	51408 M	40	90	36	1.08
51409	51409 M	45	100	39	1.42
51410	51410 M	50	110	43	1.91
51411	51411 M	55	120	48	2.53
51412	51412 M	60	130	51	3.51
51413	51413 M	65	140	56	4.47
51414	51414 M	70	150	60	5.52
51415	51415 M	75	160	65	6.81
51416	51416 M	80	170	68	8.03
51417	51417 M	85	180	72	9.23
51418	51418 M	90	190	77	11.18
51420	51420 M	100	210	85	14.68
51422	51422 M	110	230	95	20.00
51424	51424 M	120	250	102	25.40
51426	51426 M	130	270	110	32.02
51428	51428 M	140	280	112	34.50
51430	51430 M	150	300	120	42.50
51432	51432 M	160	320	130	51.20
51434	51434 M	170	340	135	55.80
51436	51436 M	180	360	140	69.50
51438	51438 M	190	380	150	84.50
51440	51440 M	200	400	155	91.30
51444	51444 M	220	420	160	106.00
51448	51448 M	245	440	160	107.27
51452	51452 M	260	480	175	135.00
522 Series		d mm	D mm	T mm	≈ KGS
522 Series		d mm	D mm	T mm	≈ KGS
52202	52202 M	10	32	22	0.08
52203	52203 M	17	35	13.2	0.10
52204	52204 M	15	40	26	0.14
52205	52205 M	20	47	28	0.21
52206	52206 M	25	52	29	0.25
52207	52207 M	30	62	34	0.41
52208	52208 M	30	68	36	0.54
52209	52209 M	35	73	37	0.57
52210	52210 M	40	78	39	0.68
52211	52211 M	45	90	45	1.03
52212	52212 M	50	95	46	1.12
52213	52213 M	55	100	47	1.28
52214	52214 M	55	105	47	1.40
52215	52215 M	60	110	47	1.49
52216	52216 M	65	115	48	1.57
52217	52217 M	70	125	55	2.22
52218	52218 M	75	135	62	3.06
52220	52220 M	85	150	67	3.90
52222	52222 M	95	160	67	4.22
52224	52224 M	100	170	68	4.83
52226	52226 M	110	190	80	7.05
52228	52228 M	120	200	81	7.97
52230	52230 M	130	215	89	11.46
52232	52232 M	140	225	90	12.25
52234	52234 M	150	240	97	14.74
52236	52236 M	150	250	98	16.30
52238	52238 M	160	270	109	22.10
52240	52240 M	170	280	109	22.91
52244	52244 M	190	300	110	25.20
523 Series		d mm	D mm	T mm	≈ KGS
523 Series		d mm	D mm	T mm	≈ KGS
52305	52305 M	20	52	34	0.29
52306	52306 M	25	60	38	0.44
52307	52307 M	30	68	44	0.63
52308	52308 M	30	78	49	1.06
52309	52309 M	35	85	52	1.24
52310	52310 M	40	95	58	1.68
52311	52311 M	45	105	64	2.31
52312	52312 M	50	110	64	2.49
52313	52313 M	55	115	65	2.65
52314	52314 M	55	125	72	3.94
52315	52315 M	60	135	79	4.69
52316	52316 M	65	140	79	4.82
52317	52317 M	70	150	87	6.20
52318	52318 M	75	155	88	6.46
52320	52320 M	85	170	97	8.52
52322	52322 M	95	190	110	13.81
52324	52324 M	100	210	123	19.34
52326	52326 M	130	225	130	22.00
52328	52328 M	120	240	140	28.30
52330	52330 M	130	250	140	29.31
52332	52332 M	140	270	153	38.20
52334	52334 M	150	280	153	39.90
52336	52336 M	150	300	165	46.50
52338	52338 M	160	320	183	66.40
52340	52340 M	200	340	192	78.00
524 Series		d mm	D mm	T mm	≈ KGS
52405	52405 M	15	60	45	0.63
52406	52406 M	20	70	52	0.91
52407	52407 M	25	80	59	1.44
52408	52408 M	30	90	65	2.03
52409	52409 M	35	100	72	2.64
52410	52410 M	40	110	78	3.56
52411	52411 M	45	120	87	4.70
52412	52412 M	50	130	93	6.33
52413	52413 M	50	140	101	8.03
52414	52414 M	55	150	107	9.71
52415	52415 M	60	160	115	11.80
52416	52416 M	65	170	120	14.80
52417	52417 M	65	180	128	18.60
52418	52418 M	70	190	135	20.80
52420	52420 M	80	210	150	28.20
52422	52422 M	90	230	166	37.80
52424	52424 M	95	250	177	48.40
52426	52426 M	100	270	192	56.50
52428	52428 M	140	280	196	60.60
52430	52430 M	150	300	209	73.90
52432	52432 M	160	320	226	90.50
52434	52434 M	170	340	236	108.00
52436	52436 M	180	360	245	126.00
532 Series		d mm	D mm	T mm	≈ KGS
532 Series		d mm	D mm	T mm	≈ KGS
53200	53200 M	10	26	11.6	0.03
53201	53201 M	12	28	11.4	0.03
53202	53202 M	15	32	13.3	0.03
53203	53203 M	17	35	13.2	0.06
53204	53204 M	20	40	14.7	0.08
53205	53205 M	25	47	16.7	0.12
53206	53206 M	30	52	17.8	0.15
53207	53207 M	35	62	19.9	0.22
53208	53208 M	40	68	20.3	0.28
53209	53209 M	45	73	21.3	0.29
53210	53210 M	50	78	23.5	0.36
53211	53211 M	55	90	27.3	0.59
53212	53212 M	60	95	28	0.63
53213	53213 M	65	100	28.7	0.73
53214	53214 M	70	105	28.8	0.78
53215	53215 M	75	110	28.3	0.81
53216	53216 M	80	115	29.5	0.88
53217	53217 M	85	125	33.1	1.21
53218	53218 M	90	135	38.5	1.69
53220	53220 M	100	150	40.9	2.23
53222	53222 M	110	160	40.2	2.32
53224	53224 M	120	170	40.8	2.58
53226	53226 M	130	190	47.9	3.90
53228	53228 M	140	200	48.6	4.24
53230	53230 M	150	215	53.3	5.83
53232	53232 M	160	225	54.7	6.32
53234	53234 M	170	240	58.7	7.91
53236	53236 M	180	250	58.2	8.19
53238	53238 M	190	270	65.7	11.26
53240	53240 M	200	280	65.3	11.80
53244	53244 M	220	300	65.6	13.10
53248	53248 M	240	350	81.6	20.90
53252	53252 M	260	360	82.8	29.10
53256	53256 M	280	380	85	31.50
53260	53260 M	300	420	100.5	39.50
53264	53264 M	320	440	100.5	42.00
53268	53268 M	340	460	100.3	46.40
533 Series		d mm	D mm	T mm	≈ KGS
533 Series		d mm	D mm	T mm	≈ KGS
53305	53305 M	25	52	19.8	0.18
53306	53306 M	30	60	22.6	0.26
53307	53307 M	35	68	25.6	0.38
53308	53308 M	40	78	28.5	0.57
53309	53309 M	45	85	30.1	0.68
53310	53310 M	50	95	34.3	0.97
53311	53311 M	55	105	39.3	1.35
53312	53312 M	60	110	38.3	1.37
53313	53313 M	65	115	39.4	1.51
53314	53314 M	70	125	44.2	2.09
53315	53315 M	75	135	48.1	2.60
53316	53316 M	80	140	47.6	2.75
53317	53317 M	85	150	53.1	3.43
53318	53318 M	90	155	54.6	3.71
53320	53320 M	100	170	59.2	4.87
53322	53322 M	110	190	67.2	7.70
53324	53324 M	120	210	74.1	10.37
53326	53326 M	130	225	80.3	12.70
53328	53328 M	140	240	84.9	15.10
53330	53330 M	150	250	83.7	15.71
53332	53332 M	160	270	91.7	20.80
53334	53334 M	170	280	91.3	21.60
53336	53336 M	180	300	99.3	24.07
53338	53338 M	190	320	111	36.50
53340	53340 M	200	340	118.4	42.70
534 Series		d mm	D mm	T mm	≈ KGS
534 Series		d mm	D mm	T mm	≈ KGS
53405	53405 M	25	60	24	0.41
53406	53406 M	30	70	28	0.52
53407	53407 M	35	80	32	0.79
53408	53408 M	40	90	38.2	1.10
53409	53409 M	45	100	42.4	1.77
53410	53410 M	50	110	45.6	1.94
53411	53411 M	55	120	50.5	2.57
53412	53412 M	60	130	54	3.44
53413	53413 M	65	140	60.2	4.47
53414	53414 M	70	150	63.6	5.38
53415	53415 M	75	160	69	6.64
53416	53416 M	80	170	72.2	7.84
53417	53417 M	85	180	77	9.20
53418	53418 M	90	190	81.2	10.70
53420	53420 M	100	210	90	14.50
53422	53422 M	110	230	99.7	22.00
53424	53424 M	120	250	107.3	24.60
53426	53426 M	130	270	115.2	28.00
53428	53428 M	140	280	117	34.50
53430	53430 M	150	300	125.9	40.50
53432	53432 M	160	320	135.3	58.90
53434	53434 M	170	340	141	61.30
53436	53436 M	180	360	148.3	68.80
542 Series		d mm	D mm	T mm	≈ KGS
542 Series		d mm	D mm	T mm	≈ KGS
54202	54202 M	10	32	24.6	0.09
54204	54204 M	15	40	27.4	0.15
54205	54205 M	20	47	31.4	0.22
54206	54206 M	25	52	32.6	0.26
54207	54207 M	30	62	37.8	0.42
54208	54208 M	30	68	38.6	0.51
54209	54209 M	35	73	39.6	0.57
54210	54210 M	40	78	42	0.63
54211	54211 M	45	90	49.6	1.07
54212	54212 M	50	95	50	1.13
54213	54213 M	55	100	50.4	1.53
54214	54214 M	55	105	50.6	1.46
54215	54215 M	60	110	49.6	1.44
54216	54216 M	65	115	51	1.56
54217	54217 M	70	125	59.2	2.19
54218	54218 M	75	135	69	3.03
54220	54220 M	85	150	72.8	3.91
54222	54222 M	95	160	71.4	4.17
54224	54224 M	100	170	71.6	4.66
54226	54226 M	110	190	85.8	7.27
54228	54228 M	120	200	86.2	9.91
54230	54230 M	130	215	95.6	10.22
54232	54232 M	140	225	97.4	11.20
54234	54234 M	150	240	104.4	13.60
54236	54236 M	150	250	102.4	15.53
54238	54238 M	160	270	116.4	21.30
54240	54240 M	170	280	115.6	20.97
54244	54244 M	190	300	115.2	24.00
543 Series		d mm	D mm	T mm	≈ KGS
543 Series		d mm	D mm	T mm	≈ KGS
54305	54305 M	20	52	37.6	0.30
54306	54306 M	25	60	41.2	0.48
54307	54307 M	30	68	47.2	0.67
54308	54308 M	30	78	54	1.10
54309	54309 M	35	85	56.2	1.28
54310	54310 M	40	95	64.6	1.89
54311	54311 M	45	105	72.6	2.53
54312	54312 M	50	110	70.6	2.80
54313	54313 M	50	115	70.6	2.98
54314	54314 M	55	125	80.4	3.77
54315	54315 M	60	135	87.2	4.73
54316	54316 M	65	140	86.2	4.91
54317	54317 M	70	150	95.2	6.22
54318	54318 M	75	155	97.2	6.68
54320	54320 M	85	170	105.4	8.77
54322	54322 M	95	190	118.4	13.81
54324	54324 M	100	210	131.2	18.80
Additional information: Cage: steel cage and brass cage(M) Precision: P0, P6, P5
